T170S-5RB042N-ZA18R0-200PH – 17-inch five-wire resistive touch screen designed for industrial, medical, and kiosk applications Features high durability, precise touch response Compatible with HMI, POS, Request a quote today!
| Part No. | T170S-5RB042N-ZA18R0-200PH |
| Brand | HIGGSTEC |
| Screen Size | 17.0 inch |
| Thickness Overall | 2.6mm |
| Touch Structure | ITO Film + ITO Glass (2-layer) |
| Frame Size | 375.58*308.00mm |
| Viewable Area | 339.12*271.54mm |
Hangzhou IDT Display Technology Co., Ltd. supplies industrial LCD panels, touchscreens and custom display solutions, with sourcing, engineering and integration support for industrial applications.
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Contact us for the latest price. Pricing and availability vary based on quantity, specifications, customization requirements and exchange rates. MOQ: 1 piece.
Request a Quote
T170S-5RB042N-ZA18R0-200PH - 17-Inch 5-Wire Resistive Touch Panel
The HIGGSTEC T170S-5RB042N-ZA18R0-200PH is a 17-inch, five-wire resistive touch panel with a two-layer ITO film and ITO glass structure. The specified input methods are a stylus or finger. Review the dimensions, operating conditions and connector details below against your display assembly before ordering.
Main Specifications
Selection and Compatibility

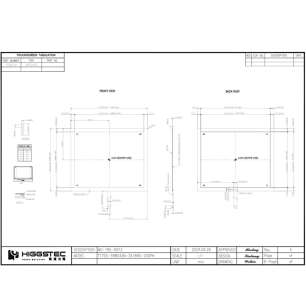

Before ordering, compare the frame size, viewable area, active area, thickness, tail position and connector pinout with the host display and enclosure drawing. The viewable area and active area are different dimensions; use the mechanical drawing to plan the bezel opening and supporting surfaces. Confirm the controller interface, voltage and signal requirements for the intended system.
This specification describes a touch panel. An LCD or touch controller is not confirmed as included; check the quotation for the supplied items. An IP rating is not stated in the supplied touch-panel specification and should not be inferred for the assembled product.
Frequently Asked Questions
Is this a capacitive touch panel?
No. It is a five-wire resistive touch panel.
Can it be operated with a finger or stylus?
The specification lists stylus or finger input. Confirm the stylus tip and operating conditions required for your application.
Are the viewable area and active area the same?
No. The viewable area is 339.12 x 271.54 mm. The drawing reference for the active area is 340.12 x 272.54 mm. Check the mechanical drawing when designing the bezel opening.
What are the operating and storage temperature ranges?
Operating temperature is -10 to +70 C. Storage temperature is -40 to +80 C. The specified humidity ranges are non-condensing.
Does this panel have an IP65 rating?
No IP rating is stated in the supplied touch-panel specification. Confirm the tested assembled product and its test report if ingress protection is required.
What information is needed for a compatibility review?
Provide the host display model and drawing, dimensions, tail and connector details, controller requirements, operating environment, input method and target quantity.
Source: HIGGSTEC T170S-5RB042N-ZA18R0-200PH specification, version 6.08.01, dated 2024-06-28. Confirm the latest drawing and quotation for project-specific requirements.
