T156S-5RB054N 15.6" 5-Wire Resistive Touch Screen

T156S-5RB054N 15.6" 5-Wire Resistive Touch Screen | Industrial Grade

Industrial-grade T156S-5RB054N 15 6-inch 5-wire resistive touch screen features 10M+ touch cycles & wide temp range (-40°C~80°C) Request free samples!

Part No.	T156S-5RB054N-ZA18R0-200PH
Brand	HIGGSTEC
Screen Size	15.6 inch
Thickness Overall	2.60mm
Touch Structure	ITO Film + ITO Glass (2-layer)
Frame Size	387.73*237.09mm
Viewable Area	345.43*194.79mm

Get Latest Price

Item	Specifications
Product	T156S-5RB054N-ZA18R0-200PH - 15.6-Inch 5-Wire Resistive Touch Panel The HIGGSTEC T156S-5RB054N-ZA18R0-200PH is a 15.6-inch, 5-wire resistive touch window with a two-layer ITO film and ITO glass structure. The specified input methods are stylus or finger.
Product Scope	This specification describes the touch window. Confirm the quoted configuration if you also require an LCD, touch controller, cables, or a complete display assembly.
Specification Revision	HIGGSTEC specification version 6.08.01, dated July 1, 2024. Confirm the current approved revision and mechanical drawing before ordering.
Model	T156S-5RB054N-ZA18R0-200PH
Brand	HIGGSTEC
Screen Size	15.6 inch
Touch Technology	5-wire resistive touch panel (RTP)
Touch Structure	Two-layer touch window: ITO film and ITO glass
Specified Input	Stylus or finger
Frame Size	387.73 x 237.09 mm
View Area	345.43 x 194.79 mm
Active Area	Refer to the model mechanical drawing
Total Thickness	2.6 mm
Operating Temperature	-10 to +70 degrees C
Storage Temperature	-40 to +80 degrees C
Operating Humidity	20% RH to 80% RH, non-condensing
Storage Humidity	20% RH to 90% RH, non-condensing
Transparency	At least 77%
Haze	8% +/-3%

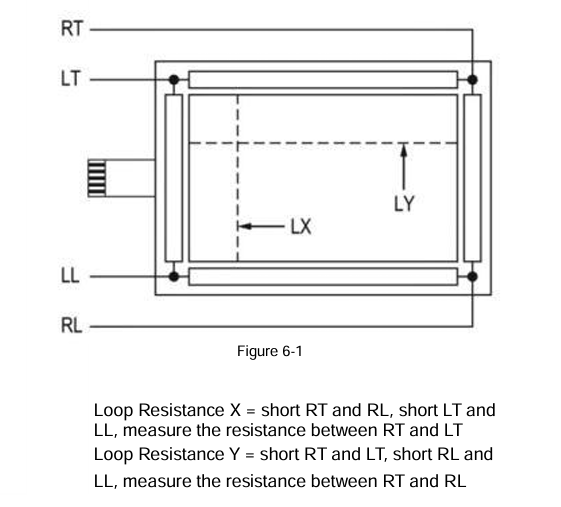

Loop Resistance	X: 20 to 500 ohms; Y: 20 to 500 ohms
Linearity	X: no more than 1.5%; Y: no more than 1.5%
Chattering	No more than 15 ms
Insulation	At least 20 megohms at 25 V DC
Voltage Endurance	No damage at 50 V DC for 60 seconds
Operating Force	No more than 50 g with an R0.8 stylus
Impact Test	25 mm diameter, 67 g steel ball dropped from 50 cm; one impact at the center area, with no damage
Static Load Test	5000 g applied over a 10 cm2 area for 30 seconds
Surface Hardness	At least 3H; pencil test at 750 g and 45 degrees
Knock Test	10,000,000 times. See the specification for test conditions and post-test acceptance criteria.

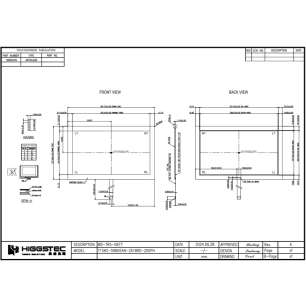

Fit Check - Mechanical Dimensions	Compare the 387.73 x 237.09 mm frame size and 345.43 x 194.79 mm view area with the host display, bezel opening, and mechanical drawing. View area and active area are different; use the drawing to verify the active-area boundary and mounting clearances.
Fit Check - Tail and Connector	Confirm the tail exit direction, tail dimensions, connector, and pin assignment from the model drawing. Do not use screen size alone to determine mechanical or electrical compatibility.
Fit Check - Controller	Confirm that the controller is suitable for a 5-wire resistive panel and verify its electrical requirements and connection against the panel drawing and host equipment.
Fit Check - Input and Environment	The specification lists stylus or finger input. Check the operating and storage temperature and humidity limits above. Glove use and wet operation are not specified; confirm and test these requirements for the complete assembly if needed.
Installation	Follow the manufacturer's mounting notes. Keep supports outside the view area, ensure the bezel opening does not contact the view area, avoid metal contact with the conductive panel backside, and calibrate the panel after installation.
Information for Compatibility Review or Quotation	Provide the host display model and mechanical drawing, frame and bezel dimensions, active and view areas, tail and connector details, controller information, operating and storage conditions, required input method, and target quantity.
Source Note	Source: HIGGSTEC T156S-5RB054N-ZA18R0-200PH specification, version 6.08.01, dated July 1, 2024. Confirm the latest approved revision and drawing for project-specific requirements.

Frequently Asked Questions

What type of touch panel is this?

It is a 15.6-inch, 5-wire resistive touch window with a two-layer ITO film and ITO glass structure.

What input methods are specified?

The HIGGSTEC specification lists stylus or finger input. Glove use and wet operation are not specified; confirm and test these requirements for the complete assembly if needed.

What are the frame size and view area?

The frame size is 387.73 x 237.09 mm. The view area is 345.43 x 194.79 mm. Refer to the model drawing for the active-area boundary and installation clearances.

What are the operating and storage temperature ranges?

The operating range is -10 to +70 degrees C. The storage range is -40 to +80 degrees C. The specified humidity ranges are non-condensing.

Does the specification state an IP65 rating?

No IP rating is stated in the supplied HIGGSTEC touch-window specification. Do not infer an enclosure or complete-product rating from the touch-panel specification alone.

Does the panel include an LCD or controller?

The supplied specification describes a touch window. Check the quotation to confirm whether an LCD, touch controller, cable, or other component is included.

What should I provide for a compatibility check?

Provide the host display model and drawing, bezel opening, active and view areas, tail and connector details, controller requirements, operating conditions, and required input method. Check both mechanical and electrical compatibility before replacement or integration.
