Military-grade T150S-5RB0126N-ZA18R0-200PH 15-inch 5-wire resistive touch panel features 15M+ touch cycles, -40°C~85°C operation & IP67 protection Request samples!
| Part No. | T150S-5RB0126N-ZA18R0-200PH |
| Brand | HIGGSTEC |
| Thickness Overall | 15.0inch |
| Thickness Overall | 2.60mm |
| Tail Design | G+G |
| Outside Area | 348.68*272.65mm |
| Active Area | 305.33*229.3mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a QuoteIDT 15-inch resistive touchscreen is available for 15-inch resistive touch projects. Typical evaluation scenarios include factory HMI, kiosks and equipment retrofit. Before ordering, confirm the complete original model number and revision rather than relying only on display size.
Confirm outline dimensions, active area, mounting points, resolution, signal interface, connector and pin assignment, timing, supply voltage, brightness, viewing direction, operating temperature and backlight requirements. A similar model name does not guarantee electrical or mechanical interchangeability.
MOQ is 1 piece. Contact us for the latest real-time quotation, current availability and lead time. Pricing changes with order quantity, specification, customization requirements and exchange rate. Replacement-panel review, touchscreen, cover glass, optical bonding, cables and controller-board support are available for qualified projects.
Request Latest Price and Compatibility Review
Send the original model number, mechanical drawing, interface, connector pinout, resolution, brightness and operating-temperature requirements for an engineering review.
MOQ is 1 piece. Price is provided by real-time quotation according to quantity, availability, specification, customization and exchange rate.
Yes. We can evaluate alternative panels and support touch, cover glass, optical bonding, cables and controller-board integration for qualified projects.
ltem
Specifications
Model
T150S-5RB0126N-ZA18R0-200PH
Size
15.0inch
Type
5-Wire RTP .Touch Window(2-layer)
Input Mode
Stylus or Finger
Frame Size
348.68*272.65mm
View Area
305.33*229.3mm
Total Thickness
2.6mm
Operation Temperature
-10°C~+70°C
Storage Temperature
-40°C~+80°C
Operation Humidity (Non-Condensing)
20%RH~80%RH
Storage Humidity (Non-Condensing)
20%RH~90%RH
Transparency
≥77%
Haze
8%±3%
Loop Resistance

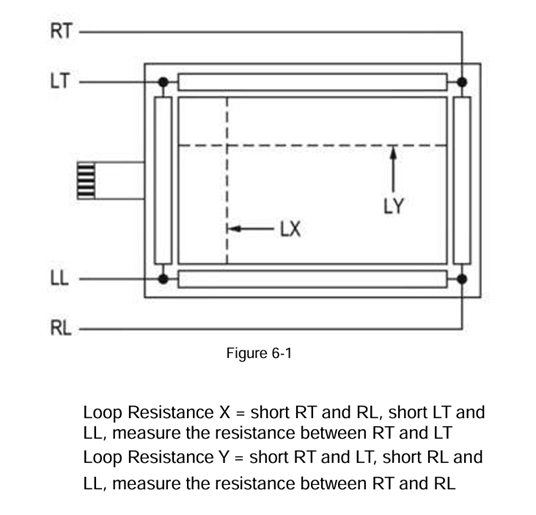

X:20~5000,Y:20~5000 (see Figure 6-1)
Linearity
X≤1.5%,Y≤1.5% (See Figure 10-2)
Chattering
≤15ms
Insulation
≥20MQ/25V(DC)
Endurance
No acting damage at DC50V/60sec.
OperatingForce
Stylus= R0.8
≤50g
Impact
25.0ΦDlA. Steel Ball /67gHeight=50cm
1 time, no damage【lmpact at center area】
Static Load
5000g within 10cm2 area for 30sec
Conforms to Section 07tem-1
Conforms to Section 06ltems-1.2&4
Hardness
3H pencil, pressure 750g/45°
≥3H
Tail Peeling
800g by vertical 90°
Satisfy (1) of ltem 6
Tail Bending
90°10 times up & down
Satisfy(1)of ltem 6
Knock Test
10.000,000 times
a.Conforms to Section 06,ltems-1 & 4
b.Section 06,ltem-2 maintainsX≤2.5%,Y≤2.5%.
c.Operating force remains ≤200g afterdurability test
