T104S-5RB094N 10.4" 5-Wire Resistive Touch Panel | Industrial Grade

Model

T104S-5RB094N-ZA11R0-080PH

Size

10.4inch

Type

5-Wire RTP .Touch Window(2-layer)

Input Mode

Stylus or Finger

Frame Size

252.75*199.95mm

View Area

212.40*159.60mm

Total Thickness

2.6mm

Operation Temperature

-10°C~+70°C

Storage    Temperature

-40°C~+80°C

Operation Humidity (Non-Condensing)

20%RH~80%RH

Storage Humidity (Non-Condensing)

20%RH~90%RH

Transparency

≥77%

Haze

8%±3%

Loop Resistance

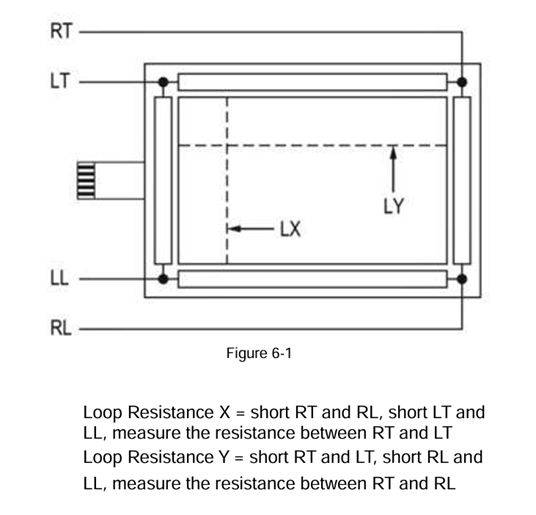

X:20~5000,Y:20~5000 (see Figure 6-1)

Linearity

X≤1.5%,Y≤1.5% (See Figure 10-2)

Chattering

≤15ms

Insulation

≥20MQ/25V(DC)

Endurance

No acting damage at DC50V/60sec.

OperatingForce

Stylus= R0.8

≤50g

Impact

25.0ΦDlA. Steel   Ball /67gHeight=50cm

1 time, no damage【lmpact at center area】

Static Load

5000g within 10cm2 area for 30sec

Conforms to Section 07tem-1

Conforms to Section 06ltems-1.2&4

Hardness

3H pencil, pressure 750g/45°

≥3H

Tail Peeling

800g by vertical 90°

Satisfy (1) of ltem 6

Tail Bending

90°10 times up & down

Satisfy(1)of ltem 6

Knock Test

10.000,000 times

a.Conforms to Section 06,ltems-1 & 4

b.Section 06,ltem-2   maintainsX≤2.5%,Y≤2.5%.

c.Operating force remains ≤200g   afterdurability test

T104S-5RB094N-ZA11R0-080PH 10.4-inch 5-Wire Resistive Touch Panel

Military-Spec Touch Solution for Extreme Environments

✔ Premium Features:

5-Wire Technology - 10M+ touch cycles (3× lifespan vs 4-wire)

Combat-Ready Durability - 4H hardness surface (MIL-STD-810G compliant)

Arctic-to-Desert Operation - -40°C to +85°C performance range

High Optical Clarity - ≥86% light transmittance with anti-glare option

Multi-Input Support - Works with stylus/gloves/bare fingers
