XH80223A1 is an 8-inch capacitive touch screen with USB interface, featuring multi-touch support, high optical clarity (>80% transmittance), and robust 6H surface hardness. Ideal for industrial control, medical devices, and kiosk applications.
| Part No. | XH80223A1 |
| Brand | IDT |
| Thickness Overall | 8.0 inch |
| Thickness Overall | 1.85mm |
| Tail Design | G+G |
| Outside Area | 183.0*141.0mm |
| Active Area | 163.05*122.54mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More

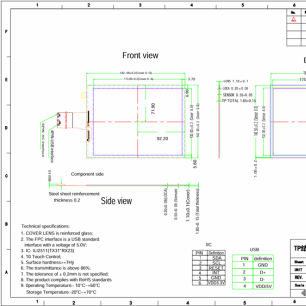

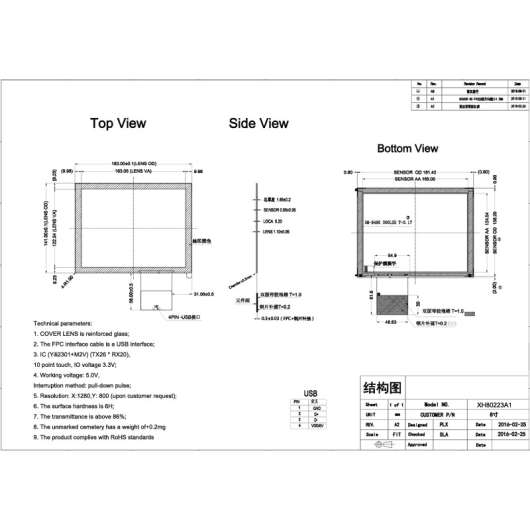

XH80223A1 8-inch capacitive touch screen
Model
XH80223A1
Size
8.0inch
Brand
IDT
COVER LENS
Reinforced glass
FPC interface
USB interface
IC
(ILI2301+M2V) (TX26 * RX20)
Touch method
10 point touch control
IO voltage
3.3V;
Working voltage
5.0V
Interruption method
Pull down pulse
Resolution
X:1280,Y: 800 (upon customer request)
Surface hardness
6H
Light transmittance
Over 86%
Working temperature
-10℃~+60℃
Storage temperature
-20℃-+70℃
Active Viewing
163.05*122.54mm
Outside Area
183.0*141.0mm
Thickness
1.85mm
The product complies with RoHS standards
