XH10492A-GDA-A1 is an industrial-grade 10.4-inch capacitive touch screen featuring dual USB/I2C interfaces, 6H surface hardness, and ≥85% light transmittance. Ideal for HMI, medical devices, and kiosk applications. Request datasheet & bulk pricing.
| Part No. | XH10492A-GDA-A1 |
| Brand | IDT |
| Thickness Overall | 10.4 inch |
| Thickness Overall | 2.90mm |
| Tail Design | G+G |
| Outside Area | 224.00*174.40mm |
| Active Area | 211.20*158.40mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
GeneralSpecification
Item
CONTENTS
Unit
Outline Dimension
224.00*174.40
mm
Active Area(W*L)
212.20*159.40
mm
View Area
211.20*158.40(10.4 inch)
mm
TOP ITO Glass thickness
0.70
mm
Coverlens thickness
2.00
mm
Total
2.90
mm
Touch IC
ILI2301+M2V
--
Interface Type
USB
--
Operation Temperature
-20℃~70℃
℃
Storage Temperature
Temperature 23 ± 3 ℃; Humidity 40%~70% RH
The storage period before installation cannot exceed 6 months.
℃
Temperature -30 ℃~80 ℃ (after installation)
Transparency
>85%

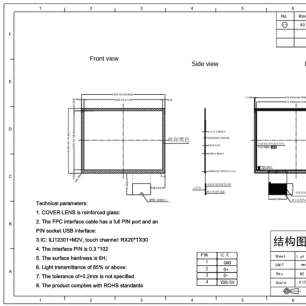

Technical parameters:
1. COVER LENS is reinforced glass:
2. The FPC interface cable has a full PIN port and an IPIN socket USB interface:
3.IC: ILI12301+M2V, touch channel: RX20*TX30
4. The interface PIN is 0.3 "102
5. The surface hardness is 6H;
6. Light transmittance of 85% or above:
7. The tolerance of+0.2mm is not specified
8. The product complies with ROHS standards
