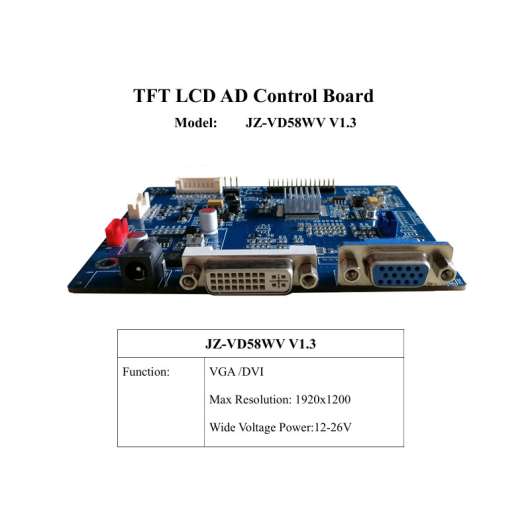

High-performance JZ-VD58WV V1 3 TFT LCD controller driver board supports VGA+DVI inputs Ideal for industrial monitors, medical equipment, and embedded systems Features plug-and-play installation and wide compatibility
| Model | JZ-VD58WV V1.3 |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | VGA/DVI |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -40-- 50℃ |
| storage temperature | -40-- 60℃ |
| size | 115.0 x 95.0 mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a Quote
1. INTRODUCTION
JZ-VD58WV is a high-quality TFT LCD monitor controller board with VGA+ DVI inputs, As the board is designed to act as a full monitor interface, besides the main functionality, also various appealing On-Screen-Display Menu layouts are possible on customer’s request.
Key features:
* LVDSoutput resolution up to 1920x1200 & 1920x1080
* Light sensor (optional)
* Working temperature:-40-- 50℃
* Serial port setting
*Function of remote control
* Power voltage range :12-26V.
* Support Working electricity：>=2A.
* When the board is working, pay attention to heat dissipation. The metal shell of the whole machine can be contacted with the power cooling place on the back of the driving board card to increase heat dissipation and so on.
2. GENERALSPECIFICATION
Output signal:
Max resolution：
Max. 1920x1200
Output：
Single/Dual/ LVDS
Signal Input:
Analog RGB：
Horizontal Freq : 30—120KHz
Vertical Freq : 50—75Hz
0.7Vp-p@75ohm
Separate / Composite / SOG sync support
DVI:
Horizontal Freq : 30—120KHz
Vertical Freq : 50—75Hz
OSDKeypad:
Power, Menu, Exit, Plus, Minus
Menutype:
Bitmap Menu
Language:
English/Chinese/ (optional multi-language)
OSD MENU:
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/Color Temp.
PC
Clock/Phase/H position/V position/Auto configure
Power
Stand-by
<0.5W 24Vstb/200mA
Input
24V/dc Note1)
Note 1) Max power is depending on the subject display to be used.
EDID datais controllable to change the necessary information. Preferred resolution.
Optional support DDC/CI.
3.CONTROLLERPICTURE

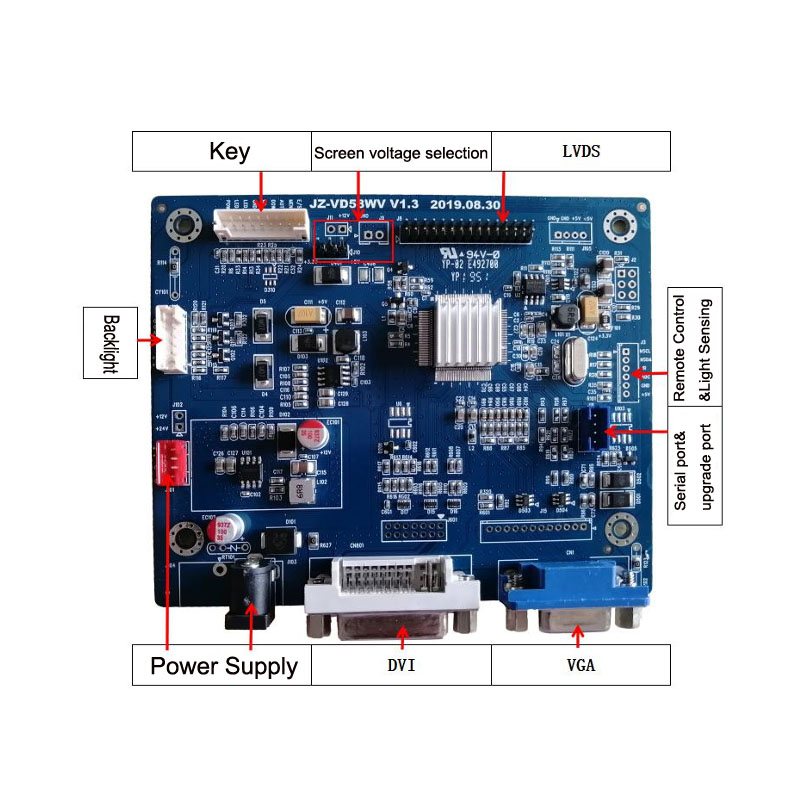

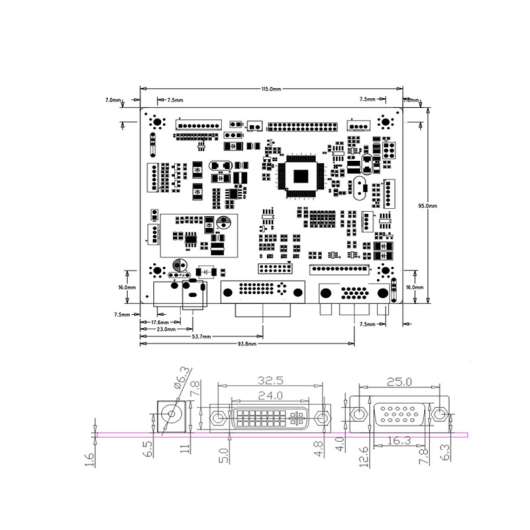

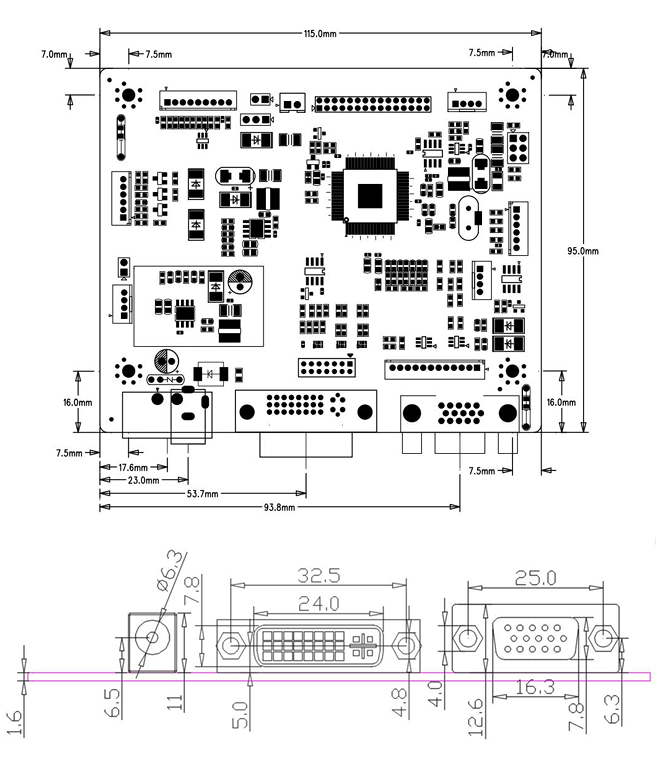

4. CONTROLLERDIMENSIONS
PCBheight: 1.6 mm
Total height: 15.0 mm
Length and width: 115.0 x 95.0 mm
