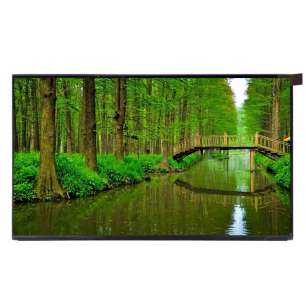

High-quality BOE 13.3-inch FHD (1920x1080) IPS TFT LCD panel EV133FHM-N40 designed for medical displays. Features excellent color accuracy, wide viewing angles, and medical-grade reliability.
| Model | EV133FHM-N40 |
| Brand | BOE |
| Size | 13.3inch |
| Resolution | 1920*1080 |
| Brightness | 300cd/m2 |
| Perspective | 85/85/85/85 |
| Interface | eDP |
| Operating Temp | 0 ~ 50 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.BOE EV133FHM-N40 Application Details
Basic Detail :
Manufacturer
BOE
Model Name
EV133FHM-N40
Panel Type
a-Si TFT-LCD , LCM
Another Name
Panel Size
13.3 inch
Designed For
Medical Imaging
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS
RoHS
Vibration Level
1.5G (14.7 m/s²)
Features :
WLED Backlight，With LED Driver，Reverse I/F,Matte
2.BOE EV133FHM-N40 Optical Details
Basic Detail :
Luminance
300 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
30 (Typ.)(Tr+Td) (ms)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
ADS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.309; Wy:0.340
Support Color
16.7M (8-bit)
Color Temperature
6602K
White Variation
1.25/1.60 (Max.)(5/13 points)
1931 Color Gamut :
NTSC Ratio
72%
sRGB
92% coverage
Adobe RGB
71% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
3.BOE EV133FHM-N40 Mechanical Details
Pixel Features :
Number of Pixel
1280(RGB)×1024 [SXGA]
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.088×0.264 mm (H×V)
Pixel Pitch(W×H)
0.264×0.264 mm (H×V) [96PPI]
Physical Size :
Active Viewing
337.92×270.336 mm (H×V)
Bezel Area
341.9×274.4 mm (H×V)
Outline Dim.
358.5×296.5 mm (H×V)
Outline Depth
10.5/11 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
5:4
Shape Style
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.26/1.40/1.47Kgs (Min./Typ./Max.)
Surface
Antiglare (Haze 25%), Hard coating (3H)
4.BOE EV133FHM-N40 Electronics Details
Refresh Rate :
60Hz
Reverse Scan :
No
Total Consumption :
3.8W (Typ.)
5.BOE EV133FHM-N40 Interface Details
Signal Electrical :
Input Current
180/260/420mA (Min./Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
0.9W (Typ.)
Signal Interface
eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)
Interface Features :
Position
Right of Board
Type
Connect
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
UJU
IS050-L30B-C10
0.5mm
30 pins
1 pcs
EDP-30P2L-020A
6.BOE EV133FHM-N40 Backlight Details
Lamp Features :
Lamp Type
4 strings
Amount
9S4P
Position
Edge light type
Exchange
-
Lamp Shape
WLED
Lamp Life
15K(Min.) (Hours)
Interface Features :
Position
-
Type
Connector
Backlight Driver :
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
MASK24037P9
9pins
1 pcs
BLE-9PINS-CCCCNNAAA
Driver Electrical :
Voltage Input
12.0V (Typ.)
Current Input
-
Consumption
2.9W (Max.)
7.BOE EV133FHM-N40 Carton Details
Box Type
Pcs/Box
Package LWH (mm)
G.W (kgs)
42
480×350×285
10.70
