AUO Original industrial grade 6 5 inch G065VN01 V2 Outdoor LCD Display Screen High Brightness LVDS 640x480 TFT LCD panel

Model	G065VN01 V2
Brand	AUO
Size	6.5inch
Resolution	640*480
Brightness	550cd/m²(Typ.)
Perspective	80/80/70/70 (Typ.)
Interface	LVDS
Operating Temp	-30 ~ 85 °C
Production State	Discontinued

Click For Price

1、AUO 6.5inch G065VN01 V2 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G065VN01 V2
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	G065VN01 V.2
	Panel Size	6.5inch	Designed For	Industrial ，Outdoor High Brightness
Maximum Ratings :	OP Temperature	-30~ 80 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Wide Temperature，Outdoor High Brightness，Lamp Repaceable，6/8bit, Life>=50K hours,With LED Driver,U/D/L/R Reverse，WLED Backlight，Glossy

2、AUO 6.5inch G065VN01 V2 Optical Details

Basic Information :	Luminance	800cd/m2; (Typ.)	Contrast Ratio	600:1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	15/10 (Typ.)(Tr/Td)
	Viewing Angle	80/80/70/70 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	57%	sRGB	75% coverage
	Adobe RGB	59% coverage	DCI-P3	60% coverage
	Rec.2020	43% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmittance	-

3、AUO 6.5inch G065VN01 V2 Mechanical Details

Pixel Features :	Number of Pixel	640(RGB)*480, VGA			Arrangement	RGB Vertical Stripe
	Dot Pitch(W×H)	0.0690.207 mm (HV)			Pixel Pitch(W*H)	0.2070.207 mm (HV) [122PPI]

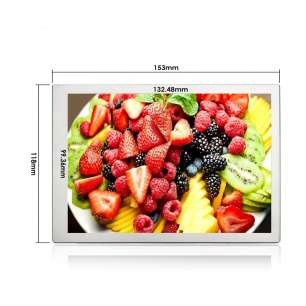

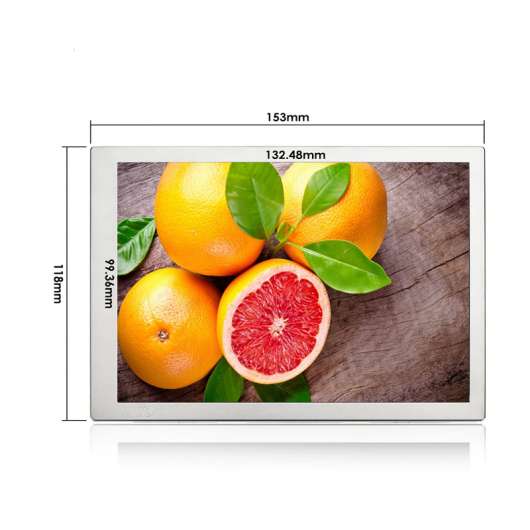

Physical Size :	Active Viewing(mm)	132.4899.36 mm (HV)			Outline Dim.(mm)	153118 mm (HV)
	Bezel Opening(mm)	135.9102.8 mm (HV)			Overall Depth(mm)	10.9±0.3 mm
Outline Features :	Form Style		Flat Rectangle	Shape Style
	Aspect Ratio		4:3 (H:V)	Orientation			Landscape type
Mounting :	Side mounting holes (4-M2); Rear mounting holes (4-M2.5)
Other Detail :	Weight	170g (Typ.)			Surface	Glare (Haze 0%), Hard coating (3H), Antireflection

4、AUO 6.5inch G065VN01 V2 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Total Consumption :	3.86W (Typ.)

5、AUO 6.5inch G065VN01 V2 Interface Detail

Signal Electrical :	Input Current	260/300mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
	Consumption	0.86W (Typ.)	Signal Interface		LVDS (1 ch, 6/8-bit)
Logic Voltage :	-
Interface Features :	Position	-	Physical Type		Connector
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Pin Assignment
	STM	MSB24013P20	1.0 mm	20 pins	1 pcs	LVDS-20P1C8B-100A

6、AUO 6.5inch G065VN01 V2 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type (Bottom side)

Exchange

Replaceable

Lamp Shape

Lamp Life

50K(Min.) (Hours)

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

STM

MS24016RHD

1.25 mm

6 pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Voltage Supply

9.0/12.0/20.0V (Min./Typ./Max.)

Current Supply

0.25A (Typ.)

Consumption

3.0W (Typ.)

7、AUO 6.5inch G065VN01 V2 Packing Details

Package Box :	Amount	Size (LWH)	Weight
Package Box :	80pcs / box	16.6 Kgs	425386430 mm
