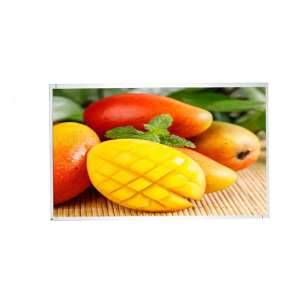

Original P215HVN01.2 21.5 Inch Tft Hd Lcd Screen Display With 1920*1080 Lvds

AUO P215HVN01 2 Application DetailsBasic Information :BrandAUOModelP215HVN01 2Typea-Si TFT-LCD , LCMUsed ForDigital Sign

Model	P215HVN01.2
Brand	AUO
Size	21.5inch
Resolution	1920*1080
Brightness	250cd/m²
Perspective	89/89/89/89
Interface	LVDS
Operating Temp	0 ~ 50 °C
Production State	In Production

Click For Price

AUO P215HVN01.2 Application Details

Basic Information :	Brand	AUO	Model	P215HVN01.2
	Type	a-Si TFT-LCD , LCM	Used For	Digital Signage
	Screen Size	21.5 inch	Storage Temp.
Environment :	Operating Temp.	0 ~ 50 °C		-20 ~ 60°C
Environment :	RoHS	RoHS	Vibration	1.5G (14.7 m/s²)
Typical Features :	WLED Backlight，Upside I/F, Matte

AUO P215HVN01.2 Mechanical Details

Pixel Features :	Resolution	1920(RGB)*1080, FHD	Dot Pitch(mm)	0.082750.24825 (HV)
Pixel Features :	Pixel Format R	RGB Vertical Stripe	Pixel Pitch(mm)	0.248250.24825 (HV) [102PPI]
Mechanical Size :	Active Viewing (mm)	476.64(H) *268.11(V)	Bezel Area(mm)	479.84(H) *271.31(V)
Mechanical Size :	Outline Dim.(mm)	495.6(H) * 292.2(V)	Depth(mm)	7.4/11 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Shape Style
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	1.67Kgs (Typ.)	Treatment	Antiglare, Hard coating (3H)

AUO P215HVN01.2 Optical Details

Basic Information :	Luminance(cd/m² )	250 (Typ.)	Contrast Ratio	3000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	VA, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	13/5 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	Wx:0.313; Wy:0.329	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	74%	sRGB	94% coverage
	Adobe RGB	74% coverage	DCI-P3	77% coverage
	Rec.2020	55% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO P215HVN01.2 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	No
Total Consumption:	14.3W (Typ.)

AUO P215HVN01.2 Interface Details

Signal Electrical :	Voltage Supply	5.0V (Typ.)		Current Supply	0.62/0.74A (Typ./Max.)
Signal Electrical :	Consumption	3.1/3.7W (Typ./Max.)
Signal Type :	LVDS (2 ch, 8-bit)			Logic Voltage	-
Interface Features :	Position	Upper right of panel		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity	Pin Assignment
Interface Detail :	P-TWO	AL230F-A0G1D-P	1.0mm	30 pins	1 pcs	LVDS-30P2C8B-160A

AUO P215HVN01.2 Backlight Details

Backlight Features :

Type

WLED

Quantity

15S4P

Position

Replacement

Shape

4 strings

Life Time

30K(Min.) Hours

Lamp Electrical :

Voltage Supply

46.5/51V (Typ./Max.)

Current Supply

60/66mA (Typ./Max.)

Consumption

11.2W (Typ.)

Interface Features :

Position

Down left corner

Type

Connector

Backlight Driver :

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

E&T

3707K-S06N-21R

1.0 mm

6 pins

1 pcs

BLE-6PINS-CCAACC

AUO P215HVN01.2 Packing Details

Package Box :	Quantity	Weight	Box Size (LWH)
Package Box :	13pcs / box	24 Kgs (Max.)	565345375 mm
