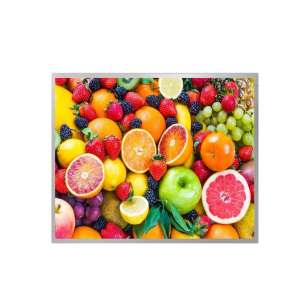

Original G190EAN01.3 19.0 Inch 60Hz 1280(RGB)*1024 Resolution with Free Angle

AUO G190EAN01 3 Application DetailsBasic Detail :ManufacturerAUOModel NameG190EAN01 3Panel Typea-Si TFT-LCD , LCMModel

Model	G190EAN01.3
Brand	AUO
Size	19inch
Resolution	1280*1024
Brightness	330 cd/m² (Typ.)
Perspective	89/89/89/89
Interface	LVDS
Operating Temp	0~50℃
Production State	In Production

Click For Price

AUO G190EAN01.3 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G190EAN01.3
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	19inch	Designed For	Industrial,Medical Imaging
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	- 20 ~ 60 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G(14.7 m/s²)
Features :	WLED Backlight,Life>=50K hours,With LED Driver, Upside I/F,Matte

AUO G190EAN01.3 Optical Details

Basic Information :	Luminance	330cd/m²(Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	13/12 (Typ.)(Tr/Td) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	AHVA, Normally Black, Transmissive
Color Performance :	Chromaticity	X:0.265; Y:0.305	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	10776K	White Variation	1.25 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	96% coverage
	Adobe RGB	74% coverage	DCI-P3	75% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G190EAN01.3 Mechanical Details

Pixel Features :	Number of Pixel	1280(LCR)*1024, SXGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.098*0.294 mm	Pixel Pitch(W*H)	0.294*0.294 mm [86PPI]
Physical Size :	Active Viewing(mm)	376.32(W)*301.056(H) mm	Outline Dim.(mm)	396324 mm (HV)
Physical Size :	Bezel Area	380.32(W)*305.06(H) mm	Outline Depth	15.8 (Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	5:4(H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.70±0.15Kgs	Surface	Antiglare

AUO G190EAN01.3 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Power Consumption :	13.5W (Typ.)

AUO G190EAN01.3 Interface Detail

Signal Electrical :	Voltage Supply		5.0V (Typ.)			Current Supply	0.7/0.9A (Typ./Max.)
	Consumption		3.5/4.5W (Typ./Max.)			Signal Interface	LVDS (2 ch, 8-bit)
Interface Features :	Type		Connector			Position	Rear
Connector Detail :	Brand	Model		Pin Pitch	Pins			Amount	Configuration
	JAE	FI-XB30SSL-HF15		1.0mm	30 pins			1 pcs	LVDS-30P2C8B-190A

AUO G190EAN01.3 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type (Bottom side)

Exchange

Lamp Shape

Lamp Life

50K(Min.) Hours

Interface Features :

Position

Type

Connector

Backlight Driver :

With LED Driver

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

STM

MS24019RHD

1.25mm

9 pins

1 pcs

Driver Electrical :

Input Current

Input Voltage

12.0±1.2V

Consumption

10.0/11.5W (Typ./Max.)

AUO G190EAN01. 3 Packing Details

Package Box :	Amount	Size (LWH)	Weight
Package Box :	7 pcs / box	476274414mm	18.6 Kgs
