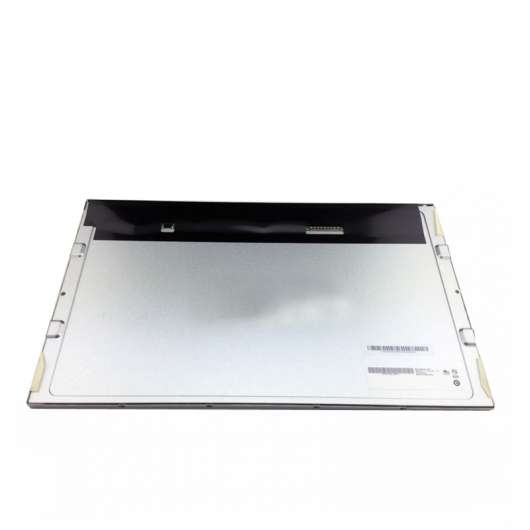

AUO G185XW01 V201 18.5inch 1366*768 TFT LCD

AUO G185XW01 V201 18.5inch 1366*768 TFT LCD Display module for industrial

AUO G185XW01 V201 Application DetailsBasic Detail :ManufacturerAUOModel NameG185XW01 V201Panel Typea-Si TFT-LCD , LCMM

Model	G185XW01 V201
Brand	AUO
Size	18.5inch
Resolution	1366*768
Brightness	450 cd/m²
Perspective	85/85/80/80 (Typ.)
Interface	LVDS
Operating Temp	0 ~ 60 °C
Production State	In Production

Click For Price

AUO G185XW01 V201 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G185XW01 V201
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	18.5inch	Designed For	Industrial
Maximum Ratings :	OP Temperature	0 ~ 60 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Lamp Repaceable,WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F，Matte

AUO G185XW01 V201 Optical Details

Basic Information :	Luminance	450 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	3.5/1.5 (Typ.)(Tr/Td) ms
	Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.43/1.54 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	71%	sRGB	94% coverage
	Adobe RGB	73% coverage	DCI-P3	74% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G185XW01 V201 Mechanical Details

Pixel Features :	Number of Pixel	1366(RGB)*768, WXGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W*H)	0.1000.300 mm (HV)	Pixel Pitch(W*H)	0.3000.300 mm (HV) [84PPI]
Physical Size :	Active Viewing(mm)	409.8230.4 mm (HV)	Outline Dim.(mm)	430.4254.7 mm (HV)
Physical Size :	Bezel Area	413.4234.0 mm (HV)	Outline Depth	10.6 (Typ.)mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:9(H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.44Kgs (Max.)	Surface	Antiglare, Hard coating (3H)

AUO G185XW01 V201 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Power Consumption :	13.5W (Typ.)

AUO G185XW01 V201 Interface Detail

Signal Electrical :	Voltage Supply	5.0V (Typ.)		Current Supply	0.9/1.1A (Typ./Max.)
Signal Electrical :	Consumption	4.5/5.5W (Typ./Max.)		Signal Interface	LVDS (1 ch, 8-bit)
Interface Features :	Position	Rear		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity	Pin Configuration
Interface Detail :	P-TWO	187145-30091-3	1.0mm	30 pins	1pcs	LVDS-30P1C8B-170A

AUO G185XW01 V201 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type

Exchange

Replaceable

Lamp Shape

Lamp Life

50K(Min.) Hours

Interface Features :

Position

Rear

Physical Type

Connector

Interface Detail :

Brand

Model

Amount

Pin Pitch

Pin Amount

E&T

3808K-F05N-12R

1 pcs

1.25 mm

5 pins

Backlight Driver :

With LED Driver

Driver Electrical :

Input Current

0.75/1.0A (Typ./Max.)

Input Voltage

12.0±1.2V

Consumption

9.0/13.2W (Typ./Max.)

AUO G185XW01 V201 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	8 pcs / box	15.0Kgs	520280355 mm (LWH)
