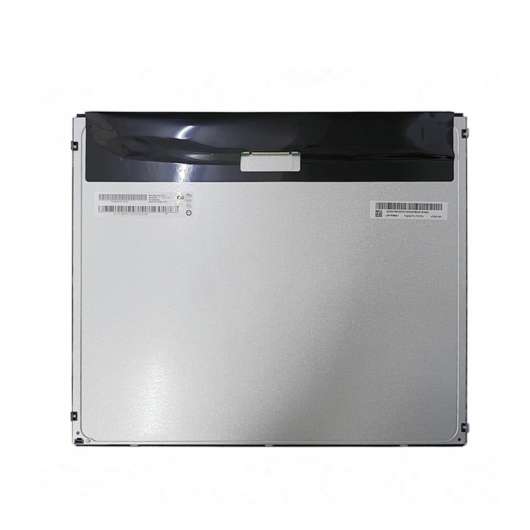

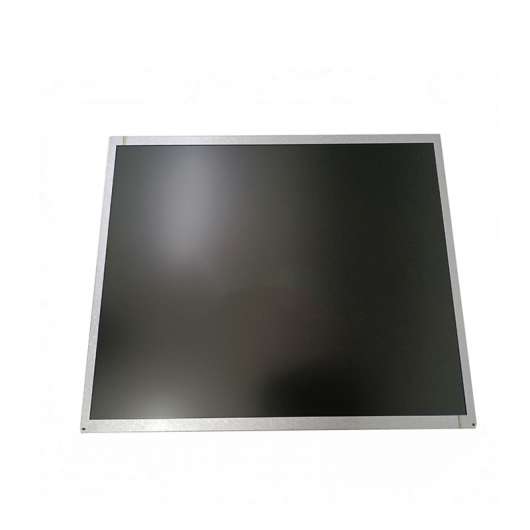

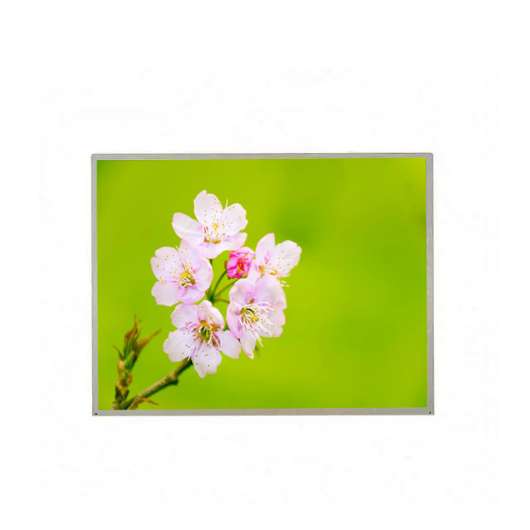

P170ETN01.0 17 inch 1280x1024 Brightness 250 cd/m2 display TFT lcd panel modules

AUO P170ETN01 0 Application DetailsBasic Information :BrandAUOModelP170ETN01 0Typea-Si TFT-LCD , LCMUsed ForDigital Sign

Model	P170ETN01.0
Brand	AUO
Size	17inch
Resolution	1280*1024
Brightness	250 cd/m² (Typ.)
Perspective	85/85/80/80 (Typ.)
Interface	LVDS
Operating Temp	0 ~ 50 °C
Production State	In Production

Click For Price

AUO P170ETN01.0 Application Details

Basic Information :	Brand	AUO	Model	P170ETN01.0
	Type	a-Si TFT-LCD , LCM	Used For	Digital Signage
	Screen Size	17.0 inch
Environment :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C
Environment :	RoHS	RoHS	Vibration	1.5G (14.7 m/s²)
Typical Features :	WLED Backlight,Upside I/F,Matte

AUO P170ETN01.0 Mechanical Details

Pixel Features :	Resolution	1280(RGB)*1024, SXGA	Dot Pitch(mm)	0.0880.264 (HV)
Pixel Features :	Pixel Format R	RGB Vertical Stripe	Pixel Pitch(mm)	0.2640.264 (HV) [96PPI]
Mechanical Size :	Active Viewing	337.92(H) *270.336(V)	Bezel Area(mm)	341.7(H) * 274.1(V)
Mechanical Size :	Outline Dim.(mm)	358.5(H) *296.5(V)	Depth(mm)	7.7/10.8 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Shape Style
Outline Features :	Aspect Ratio	5:4 (H:V)	Orientation	Landscape type
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	1.27Kgs (Max.)	Treatment	Antiglare, Hard coating (3H)

AUO P170ETN01.0 Optical Details

Basic Information :	Luminance(cd/m²）	250 (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/80/80(Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	-	Response(ms)	3.8/1.2 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	Wx:0.313; Wy:0.329	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.33 (Typ./Max.)(9points)
1931 Color Gamut :	NTSC Ratio	73%	sRGB	96% coverage
	Adobe RGB	74% coverage	DCI-P3	76% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO P170ETN01.0 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	No
Total Consumption :	7.5W (Typ.)

AUO P170ETN01.0 Interface Details

Signal Electrical :	Voltage Supply	5.0V (Typ.)		Current Supply	0.60/0.72A (Typ./Max.)
Signal Electrical :	Consumption	3.0/3.6W (Typ./Max.)
Signal Type :	LVDS (2 ch, 8-bit)			Logic Voltage	-
Interface Features :	Position	Upper middle of panel		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity	Pin Assignment
Interface Detail :	P-TWO	AL230F-A0G1D-P	1.0mm	30 pins	1 pcs	LVDS-30P2C8B-160A

AUO P170ETN01.0 Backlight Details

Backlight Features :

Type

WLED

Quantity

9S4P

Position

Edge light type (Bottom side)

Replacement

Shape

4strings

Life Time

30K(Min.) Hours

Lamp Electrical :

Voltage Supply

24.8±1.8V

Current Supply

45/49.5mA (Typ./Max.)

Consumption

4.5/4.8W (Typ./Max.)

Interface Features :

Position

Down left corner

Type

Connector

Interface Detail :

Brand

Model

Quantity

Pins

Pitch

Pin Configuration

E&T

3707K-S06N-21R

1 pcs

6 pins

1.0 mm

BLE-6PINS-CCAACC

AUO P170ETN01.0 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	15pcs / box	21.1 Kgs	416390377 mm (LWH)
