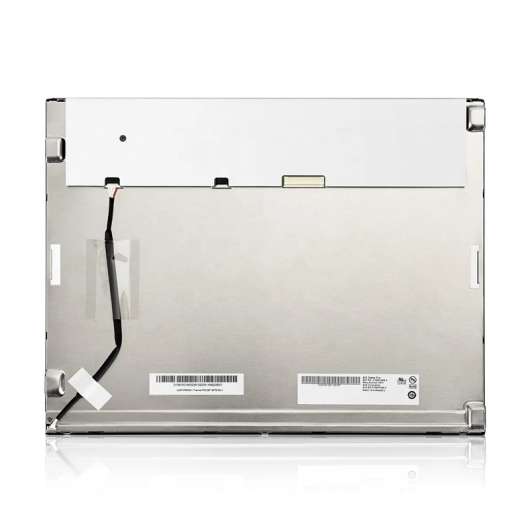

AUO Industrial Screen G150XTN06.1 Good quality 1024*768 15.0" 30 pins Led Screen Lcd Display Laptop Lcd Screen Replacement

AUO G150XTN06 1 Application DetailsBasic Detail :ManufacturerAUOModel NameG150XTN06 1Panel Typea-Si TFT-LCD , LCMModel

Model	G150XTN06.1
Brand	AUO
Size	15inch
Resolution	1024*768
Brightness	500cd/m2
Perspective	80/80/70/80 (Typ.)
Interface	LVDS
Operating Temp	-20 ~ 70 °C
Production State	Discontinued

Click For Price

AUO G150XTN06.1 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G150XTN06.1
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	15 inch	Designed For	Idustrial
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-20 ~ 70 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Lamp Repaceable, WLED Backlight，Life>=70K hours, With LED Driver,6/8 bit，Matte,Upside I/F

AUO G150XTN06.1 Optical Details

Basic Information :	Luminance	500cd/m²(Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	5.7/2.3(Typ.)(Tr/Td) (ms)
	Viewing Angle	80/80/70/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	63%	sRGB	85% coverage
	Adobe RGB	65% coverage	DCI-P3	65% coverage
	Rec.2020	47% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G150XTN06.1 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768 [XGA]			Arrangement	RGB Vertical Stripe
	Dot Pitch(W×H)	0.099*0.297 mm			Pixel Pitch(W×H)	0.297*0.297 mm [85PPI]
Physical Size :	Active Viewing(mm)	304.128(W)*228.096(H) mm			Outline Dim.(mm)	326.5(W)*253.5(H) mm
	Bezel Area(mm)	310.18(W)*234.4(H) mm			Depth(mm)	6.3±0.5 mm
Outline Features :	Form Style	Flat Rectangle			Outline Shape
	Aspect Ratio	4:3 (H:V)			Orientation	Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight		560g (Typ.)	Treatment			Antiglare

AUO G150XTN06.1 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Total Consumption :	11.5W (Typ.)

AUO G150XTN06.1 Interface Detail

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	450/750mA (Typ./Max.)
Signal Electrical :	Consumption	1.49/2.48W (Typ./Max.)		Signal Interface	LVDS (1 ch, 6/8-bit)
Interface Features :	Position	Rear		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity	Pin Configuration
Interface Detail :	STM	MSCKT2407P30	1.0mm	30 pins	1 pcs

AUO G150XTN06.1 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity		-	Position			Edge light type (Bottom side)
	Exchange	Replaceable		Lamp Shape		-	Lamp Life			70K(Min.) (Hours)
Interface Features :	Position	-		Physical Type		Included in panel signal interface
Interface Detail :	Brand	Model		Amount		Pin Pitch		Pin Amount			Pin Assignment
	E&T	3808K-F05N-12R		1 pcs		1.25 mm		5 pins
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply		12.0±1.2V		Current Supply				0.75A (Typ.)
	Consumption		9.0W (Typ.)

AUO G150XTN06.1 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	20pcs / box	17.0 Kgs (Max.)	413366359 mm
