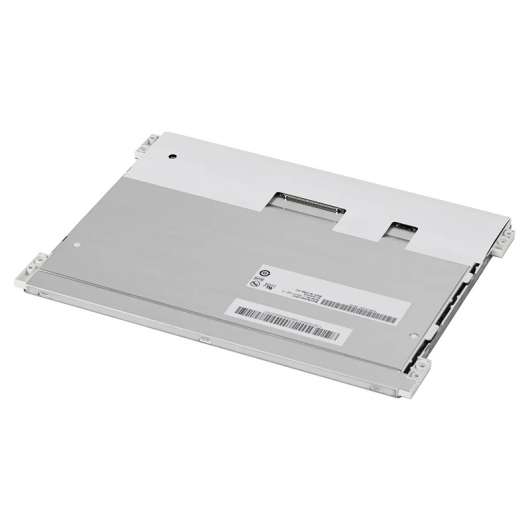

Name: AUO 15 inch 1024x768 G150XTN03.0 AUO TFT LCD LVDS Screen 1024x768 Resolution
Brand: AUO
SKU: G150XTN03.0

AUO 15 inch 1024x768 G150XTN03.0 AUO TFT LCD LVDS Screen 1024x768 Resolution

1、AUO G150XTN03 0 Application DetailsBasic Detail :ManufacturerAUOModel NameG150XTN03 0Panel Typea-Si TFT-LCD , LCMMode

Model	G150XTN03.0
Brand	AUO
Size	15.0inch
Resolution	1024*768
Brightness	350 cd/m² (Typ.)
Perspective	85/85/80/80 (Typ.)
Interface	LVDS
Operating Temp	0 ~ 65 °C
Production State	Discontinued

Click For Price

1、AUO G150XTN03.0 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G150XTN03.0
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	15inch	Designed For	Idustrial
Maximum Ratings :	OP Temperature	0 ~ 65°C	ST Temperature	-20 ~ 65°C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	WLED Backlight，With LED Driver, 6/8 bit，Matte

2、AUO G150XTN03.0 Optical Details

Basic Information :	Luminance	350 cd/m² (Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	5.7/2.3 (Typ.)(Tr/Td) ms
	Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	60%	sRGB	84% coverage
	Adobe RGB	63% coverage	DCI-P3	63% coverage
	Rec.2020	45% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3、AUO G150XTN03.0 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768 [XGA]			Arrangement	RGB Vertical Stripe
	Dot Pitch(W*H)	0.099*0.297 mm			Pixel Pitch(W*H)	0.297*0.297 mm [85PPI]
Physical Size :	Active Viewing(mm)	304.128(W)*228.096(H) mm			Outline Dim.(mm)	326.5(W)*253.5(H) mm
	Bezel Area(mm)	313.55(W)*237.25(H) mm			Depth(mm)	12.0 (Max.) mm
Outline Features :	Form Style	Flat Rectangle			Outline Shape
	Aspect Ratio	4:3 (H:V)			Orientation	Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight		1.20Kgs (Max.)	Treatment			Antiglare, Hard coating (3H)

4、AUO G150XTN03.0 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Total Consumption :	10.9W (Max.)

5、AUO G150XTN03.0 Interface Detail

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	1.0/1.5A (Typ./Max.)
Signal Electrical :	Consumption	3.3/5.0W (Typ./Max.)		Signal Interface	LVDS (1 ch,6/8-bit)
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity	Pin Configuration
Interface Detail :	STM	MSB240420E	1.25mm	20 pins	1 pcs	LVDS-20P1C8B-020D

6、AUO G150XTN03.0 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity		-	Position			Edge light type (Bottom side)
	Exchange	No		Lamp Shape		-	Lamp Life			30K(Min.) (Hours)
Interface Features :	Position	-		Physical Type		Connector
Interface Detail :	Brand	Model		Amount		Pin Pitch		Pin Amount			Pin Assignment
	E&T	3808K-F05N-02R		1 pcs		1.25 mm		5 pins
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply		12.0±1.2V		Current Supply				0.70A (Typ.)
	Consumption		8.4/10W (Typ./Max.)

7、AUO G150XTN03.0 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	15 pcs / box	20.0Kgs	375430360 mm (LWH)
