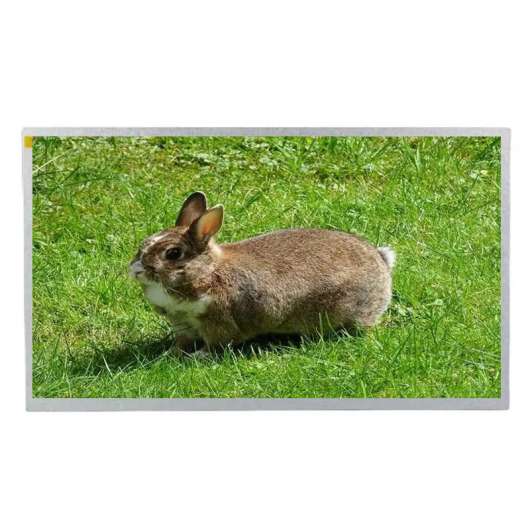

AUO 15.6 inch 1920x1080h IPS TFT LCD Screen G156HAB01.0 with Full HD, 300 nits an

AUO G156HAB01 0 Application DetailsBasic Detail :ManufacturerAUOModel NameG156HAB01 0Panel Typea-Si TFT-LCD , LCMModel

Model	G156HAB01.0
Brand	AUO
Size	15.6inch
Resolution	1920*1080
Brightness	300 cd/m² (Typ.)
Perspective	89/89/89/89
Interface	eDP
Operating Temp	0 ~ 50 °C
Production State	In Production

Click For Price

AUO G156HAB01.0 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G156HAB01.0
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	15.6inch	Designed For	Idustrial
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	WLED Backlight， With LED Driver，ReverseI/F

AUO G156HAB01.0 Optical Details

Basic Information :	Luminance	300cd/m² (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	25 (Typ.)(Tr+Td) ms
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	AHVA, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.2M (6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(5points)
1931 Color Gamlt :	NTSC Ratio	49%	sRGB	68% coverage
	Adobe RGB	51% coverage	DCI-P3	51% coverage
	Rec.2020	37% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G156HAB01.0 Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)*1080, FHD	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W*H)	0.059750.17925 mm (HV)	Pixel Pitch(W*H)	0.179250.17925 mm (HV) [141PPI]
Physical Size :	Active Viewing(mm)	344.16193.59 mm (HV)	Outline Dim.(mm)	361227 mm (HV)
Physical Size :	Bezel Area	-	Outline Depth	4.9 (Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Touch Screen :	Touch Points	10 points	TP Signal	USB (Support Win7, Win8, Win10)
Touch Screen :	TP Controller	With touch controller	Touchscreen	On-Cell Touch
Holes & Brackets :	Without
Other Features :	Weight	620g (Max.)	Surface	Hard coating (7H)
Other Features :	Panel Cover	With Cover Lens

AUO G156HAB01.0 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Power Consumption :	5.5W (Max.)

AUO G156HAB01.0 Interface Detail

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	0.22A (Max.)
Signal Electrical :	Consumption	0.8W (Max.)		Signal Interface	eDP (2 Lanes), eDP1.2
Interface Features :	Position	Rear		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity	Pin Configuration
Interface Detail :	I-PEX	20765-040E-11A	0.5mm	40 pins	1pcs

AUO G156HAB01.0 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity		-	Position		Edge light type
	Exchange	-		Lamp Shape		-	Lamp Life		30K(Min.) Hours
Interface Features :	Position	-		Physical Type		Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply		6/12/21V (Min./Typ./Max.)		Current Supply			-
	Consumption		4.15W (Max.)

AUO G156HAB01.0 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (LWH)
Package Carton :	16pcs / box	14.0 Kgs	508408279 mm
