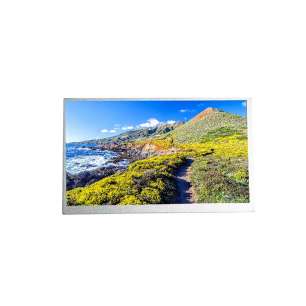

A090VW01 V3 Industrial LCD Module | 9.0"TFT LCD Display

A090VW01 V3 9.0`TFT LCD Display
A090VW01 V3 9.0`TFT LCD Display
  • A090VW01 V3 9.0`TFT LCD Display
  • A090VW01 V3 9.0`TFT LCD Display

A090VW01 V3 Industrial LCD Module | 9.0"TFT LCD Display

A090VW01 V3 9-inch industrial LCD display module, 1280×800 resolution, and -30°C to 80°C operating range for harsh environments OEM ODM solutions available Request datasheet & wholesale quote now

Model A090VW01 V3
Brand AUO
Size 9.0inch
Resolution 800*480
Brightness 250cd/m²
Perspective 70/70/55/70 (Typ.)
Interface TTL + SPI
Operating Temp -10 ~ 60 °C
Production State Discontinued
Click For Price

1.AUOA090VW01 V3 Application Details

Basic Detail :ManufacturerAUOModel NameA090VW01 V3
Panel Typea-Si TFT-LCD , LCMModel AliasA090VW01 V.3
Panel Size9.0inchDesigned ForAutomotive Display
Maximum Ratings :OP Temperature-10~ 60°CST Temperature-20 ~ 70 °C
RoHSRoHSVibration Level
Features :WLED Backlight , U/D/L/R Reverse，Matte


2.AUO A090VW01 V3 Optical Details

Basic Information :Luminance250cd/m²(Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at-Response Speed4/12 (Typ.)(Tr/Td) ms
Viewing Angle

70/70/55/70 (Typ.)(CR≥10)

Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.300; Wy:0.320Support Color16.7M (6-bit + Hi-FRC)
Color Temperature7351KWhite Variation1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio46%sRGB63% coverage
Adobe RGB48% coverageDCI-P348% coverage
Rec.202034% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.AUO A090VW01 V3 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*480, WVGAArrangementRGB Horizontal Stripe
Dot Pitch(W*H)0.249*0.0765 mmPixel Pitch(W*H)0.249*0.2295 mm  [104PPI]
Physical Size :Active Viewing(mm)199.2(W)*110.16(H) mmOutline Dim.(mm)211.7(W)*125(H) mm
Bezel Opening(mm)201.2(W)*112.16(H) mmOverall Depth(mm)4.6 (Typ.) mm
Outline Features :Form StyleFlat RectangleShape Style
Aspect Ratio16:9 (H:V)OrientationLandscape type
Mounting :Without
Other Detail :Weight220g (Typ.)TreatmentAntiglare, Hard coating (3H)


4.AUO A090VW01 V3 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Total Consumption :2.1W (Max.)


5.AUO A090VW01 V3  Interface Detail

Signal Electrical :Input Current3.7/29/9.2/0.5/0.5mA (Typ.)(IDD/IDPA/IDNA/IGH/IGL)Input Voltage3.3/5.5/-5.5/10/-13V (Typ.)(VCC/VDPA/VDNA/VGH/VGL)
Consumption-Signal InterfaceTTL (1 ch, 8-bit) + SPI
Logic Voltage for Signals :0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm34pins2 pcs


6.AUO A090VW01 V3 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S3PPositionEdge light type
Exchange-Lamp ShapeArrayLamp Life10K(Typ.) (Hours)
Lamp Electrical :Input Voltage9.6V (Typ.)Current Supply200mA (Typ.)
Consumption1.92W (Max.)
Interface Features :Position-TypeIncluded in panel signal interface
Interface Detail :BrandModelPitchPinsAmountPin Assignment
JSTBHSR-02VS-13.5 mm2 pins1 pcsBLE-2PINS-AC
Backlight Driver :No


7.AUO A090VW01 V3 Packing Details

Package Box :AmountSize (L*W*H)Weight
30pcs / box520*340*250 mm9.0Kgs
