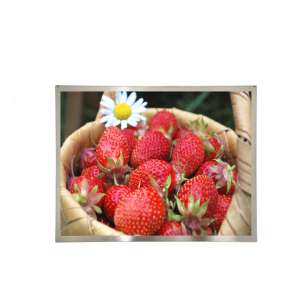

Original AUO G190ETN01.001 19" TFT-LCD Display | Industrial LVDS Display | a-Si Panel

G190ETN01 001
G190ETN01 001
  • G190ETN01 001
  • G190ETN01 001

Original AUO G190ETN01.001 19" TFT-LCD Display | Industrial LVDS Display | a-Si Panel

Genuine AUO 19 " a-Si TFT-LCD Panel (G190ETN01 001) Industrial-grade LVDS interface, temperature operation (0°C~50°C) & 350nits brightness Original for HMI, medical equipment and factory automation,OEM ODM Touch Screen Services available

Model G190ETN01.001
Brand AUO
Size 19inch
Resolution 1280*1024
Brightness 350cd/m²
Perspective 85/85/80/80 (Typ.)
Interface LVDS
Operating Temp 0 ~ 50 °C
Production State In Production
Click For Price

1.AUO G190ETN01.001 Application Details

Basic Info :Panel BrandAUOPanel ModelG190ETN01.001
Diagonal Size19.0inchApplicationIndustrial
Panel Typea-Si TFT-LCD , LCM

Reliability :Operating Temp.0 ~ 50 °CStorage Temp.-20 ~ 60 °C
RoHS StateRoHSVibration Rating1.5G (14.7  m/s²)
Specific Features :DCI-P3,Srgb, WLED Backlight，Matte


2.AUO G190ETN01.001 Mechanical Details

Pixel Features :Pixel Format1280(RGB)*1024, SXGADot Pitch (W*H)0.098*0.294 mm
ConfigurationRGB Vertical StripePixel Pitch0.294*0.294 mm  [86PPI]
Mechanical Size :Active Viewing376.32(W)*301.056(H) mmOverall Dim.396(W)*324(H) mm
Bezel Opening380.0*305.08 mm (H*V)Overall Depth11.7 (Max.) mm
Outline Features :Form FactorFlat RectangleOrientationLandscape type
Aspect Ratio5:4 (H:V)Shape Style
Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
Other Features :Weight1.80Kgs (Typ.)SurfaceAntiglare


3.AUO G190ETN01.001 Optical Details

BrightnessBrightness350 cd/m²; (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
Viewing Angle85/85/80/80 (Typ.)(CR≥10)Optical ModeTN, Normally White, Transmissive
Viewing Direction-Response Time3.6/1.4 (Typ.)(Tr/Td) (ms)
Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers16.7M (6-bit + Hi-FRC)
Color Temperature6485KUniformity1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :NTSC Ratio89%sRGB100% coverage

Adobe RGB		84%
coverage		DCI-P392% coverage
Rec.202067% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


4.AUO G190ETN01.001 Electronics Details

Frame Frequency :60Hz
Reverse Scan :No
Total Consumption :13.9W (Typ.)


5.AUO G190ETN01.001 Backlight Details

Back-light Features :Lamp TypeWLEDAmount-Life Time30K(Typ.) (Hours)
Replacement-Lamp Shape-PositionEdge light type (Bottom side)
Lamp Electrical :Input Voltage38.4/41.6V (Typ./Max.)Input Current60mA (Typ.)
Consumption9.2/10.3W (Typ./Max.)
Interface Features :TypeConnectorPositionDown left corner
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
CviLuxCI1406M1HRN-NH11.0mm6pins1 pcsBLE-6PINS-CCAACC
Lamp DriverNo


6.AUO G190ETN01.001 Interface Details

Signal Systerm :LVDS (2 ch, 8-bit)Logic Voltage-
Signal Electrical :Input Current0.94/1.1A (Typ./Max.)Input Voltage5.0V (Typ.)
Consumption4.7/5.5W (Typ./Max.)
Interface Features :TypeConnectorPosition-
Connector Detail :BrandModelPin PitchPinsAmountConfiguration
JAEFI-XB30SSLA-HF151.0mm30 pins1 pcsLVDS-30P2C8B-180A


7.AUO G190ETN01.001 Packing Details

Package Box :QuantityWeightBox Size
13 pcs / box26.69 Kgs 409*367*475 mm (L*W*H)
