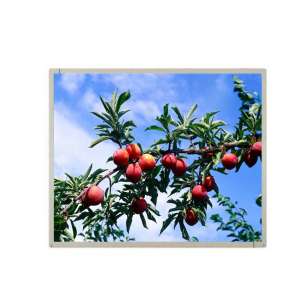

Original G190EAN01.5 19" LCD | 1280x1024 Free Angle View | 60Hz Industrial Display

G190EAN01.5
G190EAN01.5
  • G190EAN01.5
  • G190EAN01.5

Original G190EAN01.5 19" LCD | 1280x1024 Free Angle View | 60Hz Industrial Display

Genuine AUO 19 " TFT LCD Panel (G190EAN01 5) 1280x1024 resolution with revolutionary Free Angle Technology - clear viewing at any angle 60Hz refresh rate, 700nits brightness & temperature range (0°C~50°C) Ideal for control rooms, medical imaging and industrial HMIs,OEM ODM Touch Screen Services available

Model G190EAN01.5
Brand AUO
Size 19inch
Resolution 1280*1024
Brightness 700cd/m2
Perspective 89/89/89/89
Interface LVDS
Operating Temp 0 ~ 50 °C
Production State In Production
Click For Price

1.AUO G190EAN01.5 Application Details

Basic Detail :ManufacturerAUOModel Name G190EAN01.5
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size19inchDesigned ForIndustrial,Medical Imaging,Outdoor High Brightness
Maximum Ratings :OP Temperature0 ~ 50  °CST Temperature- 20 ~ 60  °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :Hight Brightness,WLED Backlight,Life>=50K hours,With LED Driver, Upside I/F,Matte


2.AUO  G190EAN01.5 Optical Details

Basic Information :Luminance700cd/m² (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed13/12 (Typ.)(Tr/Td) (ms)
Viewing Angle89/89/89/89  (Typ.)(CR≥10)Operating ModeAHVA, Normally Black, Transmissive
Color Performance :ChromaticityX:0.265; Y:0.305Support Color16.7M (8-bit)
Color Temperature10776KWhite Variation1.25 (Max.)(9 points)
1931 Color Gamlt :NTSC Ratio72%sRGB96% coverage
Adobe RGB74% coverageDCI-P375% coverage
Rec.202053% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmissivity-


3.AUO  G190EAN01.5 Mechanical Details

Pixel Features :Number of Pixel1280(LCR)*1024, SXGAArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.098*0.294 mmPixel Pitch(W*H)0.294*0.294 mm  [86PPI]
Physical Size :Active Viewing(mm)376.32(W)*301.056(H) mmOutline Dim.(mm)396*324 mm (H*V)
Bezel Area380.32(W)*305.06(H) mmOutline Depth15.8 (Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio5:4(H:V)OrientationLandscape type
Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
Other Features :Weight1.70±0.15KgsSurfaceAntiglare


4.AUO G190EAN01.5 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No


5.AUO G190EAN01.5 Interface Detail

Signal Electrical :Voltage Supply5.0V (Typ.)Current Supply0.7/0.9A (Typ./Max.)
Consumption3.5/4.5W (Typ./Max.)Signal InterfaceLVDS (2 ch, 8-bit)
Interface Features :Type ConnectorPosition Rear
Connector Detail :BrandModelPin PitchPinsAmountConfiguration
JAEFI-XB30SSL-HF151.0mm30 pins1 pcsLVDS-30P2C8B-190A


6.AUO G190EAN01.5 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type (Bottom side)
Exchange
-		Lamp Shape-Lamp Life50K(Min.) Hours
Interface Features :Position-TypeConnector
Backlight Driver :With LED Driver
Interface Detail :BrandModelPin PitchPinsAmountConfiguration
STMMS24019R1.25mm9 pins1 pcs
Driver Electrical :Input Current-Input Voltage12.0±1.2V
Consumption23.0/25.2W (Typ./Max.)


7.AUO G190EAN01.5 Packing Details

Package Box :
 		AmountSize (L*W*H)Weight
7 pcs / box476*274*414mm 14 Kgs
