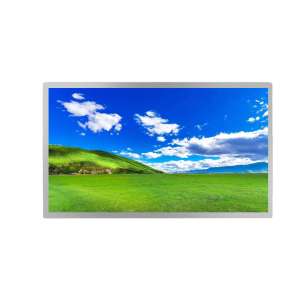

AUO G185HAN01.1 18.5" FHD IPS LCD Display | 1080P 30-pin LVDS | Industrial Display Panel

AUO G185HAN01.1 18.5inch FHD IPS LCD Display | 1080P 30-pin LVDS | Industrial Display Panel
AUO G185HAN01.1 18.5inch FHD IPS LCD Display | 1080P 30-pin LVDS | Industrial Display Panel
  • AUO G185HAN01.1 18.5inch FHD IPS LCD Display | 1080P 30-pin LVDS | Industrial Display Panel
  • AUO G185HAN01.1 18.5inch FHD IPS LCD Display | 1080P 30-pin LVDS | Industrial Display Panel

AUO G185HAN01.1 18.5" FHD IPS LCD Display | 1080P 30-pin LVDS | Industrial Display Panel

Industrial-grade AUO 18 5-inch FHD IPS LCD Panel (G185HAN01 1) 1920x1080 resolution with 30-pin LVDS interface 300nits brightness, wide viewing angles & high color accuracy Ideal for medical imaging, control systems and digital signage

Model G185HAN01.1
Brand AUO
Size 18.5inch
Resolution 1920*1080
Brightness 500cd/m2
Perspective 89/89/89/89
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.AUO 18.5inch LCD Display G185HAN01.1 Application Details

Basic Detail :ManufacturerAUOModel NameG185HAN01.1
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size18.5inchDesigned ForIndustrial，Medical Imaging
Maximum Ratings :OP Temperature-20~ 70 °CST Temperature-25 ~ 70 °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :Srgb,WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F，Matte


2.AUO 18.5inch LCD Display G185HAN01.1  Optical Details

Basic Information :Luminance500cd/m² (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed10/10 (Typ.)(Tr/Td) (ms)
Viewing Angle89/89/89/89  (Typ.)(CR≥10)Operating ModeAHVA, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.299; Wy:0.315Support Color16.7M (8-bit)
Color Temperature7502KWhite Variation1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio73%sRGB99% coverage
Adobe RGB76% coverageDCI-P376% coverage
Rec.202055% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.AUO 18.5inch LCD Display G185HAN01.1 Mechanical Details

Pixel Features :Number of Pixel1920(RGB)*1080 [FHD]ArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.071*0.213 mm (H*V)Pixel Pitch(W*H)0.213*0.213 mm (H*V)  [119PPI]
Physical Size :Active Viewing(mm)408.96*230.04 mm (H*V)Outline Dim.(mm)430.4(W)*254.6(H) mm
Bezel Area412.56(W)*;233.64(H) mm Outline Depth12.0±0.5 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9(H:V)OrientationLandscape type
Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
Other Features :Weight1.20Kgs (Typ.)SurfaceAntiglare, Hard coating (3H)


4.AUO 18.5inch LCD Display G185HAN01.1 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No


5.AUO 18.5inch LCD Display G185HAN01.1  Interface Detail

Signal Electrical :Voltage Supply5.0V (Typ.)Current Supply 0.8/1.0A (Typ./Max.)
Consumption4.0/5.5W (Typ./Max.)Signal InterfaceLVDS (2 ch, 8-bit)
Interface Features :PositionRearTypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
JAEFI-XB30SSRLA-HF161.0mm30 pins1pcsLVDS-30P2C8B-160A


6.AUO 18.5inch LCD Display G185HAN01.1  Backlight Details

Lamp Features :Lamp TypeWLEDQuantity8S7P
 		PositionEdge light type
Exchange
-		Lamp Shape7 stringsLamp Life50K(Min.) Hours
Lamp Electrical :Input Current95mA (Typ.)Input Voltage
 		25.6/28.8V (Typ./Max.)
Consumption17.02/19.15W (Typ./Max.)
Interface Features :Position-Physical Type
 Connector
Backlight Driver :With LED Driver
Driver Electrical :Input Current1.6A (Typ.)Input Voltage12.0±1.2V
Consumption19.2/23.04W (Typ./Max.)


7.AUO 18.5inch LCD Display G185HAN01.1 Packing Details

Package Box :QuantityWeight Box Size
8 pcs / box15.0Kgs520*280*355 mm (L*W*H)
