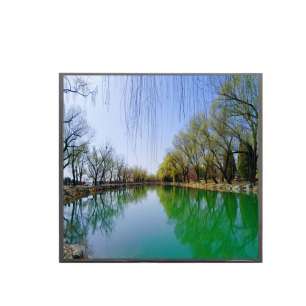

AUO G170HAN01.0 17" Square LCD Display | 1920×1920 IPS | Industrial Panel

AUO G170HAN01.0 17inch Square LCD Display
AUO G170HAN01.0 17inch Square LCD Display
  • AUO G170HAN01.0 17inch Square LCD Display
  • AUO G170HAN01.0 17inch Square LCD Display

AUO G170HAN01.0 17" Square LCD Display | 1920×1920 IPS | Industrial Panel

Industrial-grade AUO 17 " square IPS LCD panel G170HAN01 0 1920×1920 resolution, 1:1 aspect ratio DICOM-ready for medical imaging & optimized for industrial control systems

Model G170HAN01.0
Brand AUO
Size 17inch
Resolution 1920*1920
Brightness 600 cd/m² (Typ.)
Perspective 89/89/89/89
Interface eDP
Operating Temp -20 ~ 60 °C
Production State Discontinued
Click For Price

1.AUO 17inch LCD Display G170HAN01.0 Application Details

Basic Detail :ManufacturerAUOModel Name G170HAN01.0
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size17.0inchDesigned ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 60  °CST Temperature-20 ~ 70 °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :Srgb,Hight Brightness，WLED Backlight，Life>=50K hours,With LED Driver,Reverse I/F，Matte


2.AUO 17inch LCD Display G170HAN01.0 Optical Details

Basic Information :Luminance600 cd/m² (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed13/12 (Typ.)(Tr/Td) (ms)
Viewing Angle89/89/89/89  (Typ.)(CR≥10)Operating ModeAHVA, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color16.7M (8-bit)
Color Temperature6485KWhite Variation1.25/1.33 (Typ./Max.)(5points)
1931 Color Gamlt :NTSC Ratio71%sRGB99% coverage
Adobe RGB74% coverageDCI-P374% coverage
Rec.202053% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.AUO 17inch LCD Display G170HAN01.0 Mechanical Details

Pixel Features :Number of Pixel1920(RGB)*1920ArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.053*0.159 mm (H*V)Pixel Pitch(W*H)0.159*0.159 mm (H*V)  [159PPI]
Physical Size :Active Viewing(mm)305.28*305.28 mm (H*V)Outline Dim.(mm)325.01*319.33 mm (H*V)
Bezel Area-Outline Depth5.8/12.2 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio1:1(H:V)OrientationLandscape type
Holes & Brackets :Rear mounting holes (6-M3); Side mounting holes (4-M3) on left, right slugs
Other Features :Weight1.20Kgs (Typ.)SurfaceAntiglare, Hard coating (3H)


4.AUO 17inch LCD Display G170HAN01.0 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Power Consumption : 8.94W (Typ.)


5.AUO 17inch LCD Display G170HAN01.0 Interface Detail

Signal Electrical :Voltage Supply12.0V (Typ.)Current Supply1.36A (Typ.)
Consumption16.32/17.95W (Typ./Max.)Signal InterfaceeDP (4 Lanes), eDP1.3
Interface Features :PositionRearTypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
JAEHD1S040HA10.5mm40 pins1pcs


6.AUO 17inch LCD Display G170HAN01.0 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity9S6PPositionEdge light type
ExchangeNoLamp Shape6stringsLamp Life50K(Min.) Hours
Interface Features :Position-Physical Type
 Included in panel signal interface
Backlight Driver :With LED Driver


7.AUO 17inch LCD Display G170HAN01.0 Packing Details

Package Box :QuantityWeightBox Size
10 pcs / box15 Kgs508*408*279 mm  (L*W*H)
