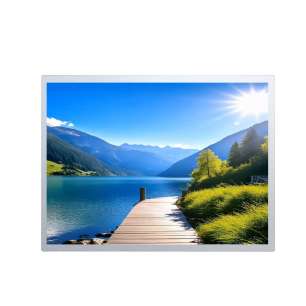

AUO G150XVN01.1 15" XGA LCD Panel | LVDS 30pin | Industrial Grade Display

Original AUO G150XVN01 1 15-inch industrial LCD: 1024x768 XGA resolution, LVDS 30-pin interface, -10°C to 70°C, 300nits brightness Direct replacement for HMI, medical & test equipment displays Request pinout diagram & volume pricing

Model G150XVN01.1
Brand AUO
Size 15inch
Resolution 1024*768
Brightness 300cd/m2
Perspective 85/85/85/85 (Typ.)
Interface LVDS
Operating Temp -10 ~ 70 °C
Production State Discontinued
Click For Price

1.AUO  G150XVN01.1 Application Details

Basic Detail :ManufacturerAUOModel NameG150XVN01.1
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size15.0inchDesigned ForIdustria
Maximum Ratings :OP Temperature-10 ~ 70°C ST Temperature-30 ~ 70 °C
RoHSRoHSVibration Level1.5G  (14.7 m/s²)
Features :WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F,180°Reverse，6/8 bit，matte


2.AUO  G150XVN01.1 Optical Details

Basic Information :Luminance300cd/m²(Typ.)Contrast Ratio1500:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed20/15 (Typ.)(Tr/Td) ms
Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeMVA, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.300; Wy:0.325Support Color262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature7274KWhite Variation1.25/1.33(Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio71%sRGB92% coverage
Adobe RGB71% coverageDCI-P374% coverage
Rec.202053% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.AUO  G150XVN01.1 Mechanical Details

Pixel Features :Number of Pixel1024(RGB)*768, XGAArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.099*0.297 mm (H*V)Pixel Pitch(W*H)0.297*0.297 mm (H*V)  [85PPI]
Physical Size :Active Viewing(mm)
304.128*228.096 mm (H*V)		Overall Dim.326.5(W)*253.5(H) mm
Bezel Opening307.2(W)*231.1(H) mmDepth(mm)9.6 (Typ.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (H:V)OrientationLandscape type
Mounting :Side mounting holes (4-M3) on left, right bezel
Other Spec :Weight910g (Max.)TreatmentAntiglare, Hard coating (3H)


4.AUO G150XVN01.1 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (180°)
Total Consumption :10.1W (Typ.)


5.AUO   G150XVN01.1 Interface Detail

Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply0.7/0.85A (Typ./Max.)
Consumption2.3/3.0W (Typ./Max.)Signal InterfaceLVDS (1 ch, 6/8-bit)
Interface Features :PositionRearTypeConnector
Interface Detail :BrandModelPitchPinsQuantityConfiguration
HRSMDF76TW-30S-1H1.0 mm30 pins1 pcs


6.AUO   G150XVN01.1 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
ExchangeNoLamp Shape-Lamp Life30K(Min.) (Hours)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :With LED Driver
Driver Electrical :Voltage Supply12.0±1.2VCurrent Supply0.65/0.9A (Typ./Max.)
Consumption7.8/12.0W (Typ./Max.)


7.AUO  G150XVN01.1 Packing Details

Package Box :QuantityWeightBox Size
10 pcs / box12.5 Kgs410*278*360 mm
