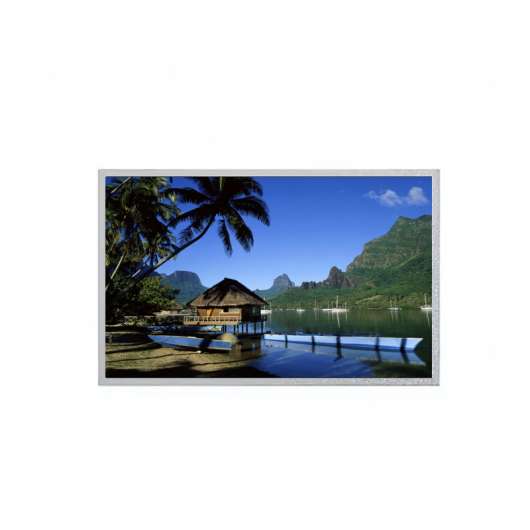

AUO G150XTN06.5 15" XGA LCD Display | Original Industrial Module | LVDS 30pin

Original AU Optronics G150XTN06 5 15 " TFT LCD module: 1024x768 XGA, 500nits brightness, LVDS 30-pin interface, pre-installed controller Plug & play replacement for industrial HMIs Wide temp (-20°C~70°C), 1-year warranty Request compatibility check & volume pricing

Model	G150XTN06.5
Brand	AUO
Size	15inch
Resolution	1024*768
Brightness	300cd/m2
Perspective	80/80/70/80
Interface	LVDS
Operating Temp	-20 ~ 70 °C
Production State	Discontinued

Get Latest Price

1.AUO G150XTN06.5 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G150XTN06.5
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	15inch	Designed For	Idustrial
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-20 ~ 70 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G(14.7 m/s²)
Features :	WLED Backlight，Life>=70K hours,With LED Driver,Upside I/F, Matte,6/8 bit

2.AUO G150XTN06.5 Optical Details

Basic Information :	Luminance	300cd/m² (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	5.7/2.3 (Typ.)(Tr/Td)
	Viewing Angle	80/80/70/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.311; Wy:0.322	Support Color	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6658K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	63%	sRGB	85% coverage
	Adobe RGB	65% coverage	DCI-P3	66% coverage
	Rec.2020	47% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.AUO G150XTN06.5 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768, XGA			Arrangement	RGB Vertical Stripe
	Dot Pitch(W*H)	0.0990.297 (HV)			Pixel Pitch(W*H)	0.2970.297 (HV) [85PPI]
Physical Size :	Active Viewing(mm)	304.128(H) *228.096(V)			Outline Dim.(mm)	326.5(H) *253.5(V)
	Bezel Area(mm)	307.4(H) *231.3(V)			Depth(mm)	12.0 (Max.)
Outline Features :	Form Style	Flat Rectangle			Outline Shape
	Aspect Ratio	4:3 (H:V)			Orientation	Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight		1.25Kgs (Typ.)	Treatment			Antiglare

4.AUO G150XTN06.5 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Total Consumption :	7.9W (Typ.)

5.AUO G150XTN06.5 Interface Detail

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	450/750mA (Typ./Max.)
Signal Electrical :	Consumption	1.49/2.48W (Typ./Max.)		Signal Interface	LVDS (1 ch, 6/8-bit)
Interface Features :	Position	Rear		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity	Pin Configuration
Interface Detail :	STM	MSB240420E	1.25 mm	20 pins	1 pcs	LVDS-20P1C8B-135A

6.AUO G150XTN06.5 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type (Bottom side)

Exchange

Lamp Shape

Lamp Life

70K(Min.) (Hours)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

E&T

3808K-F05N-12R

1.25 mm

5 pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Voltage Supply

12.0±1.2V

Current Supply

0.45A (Typ.)

Consumption

5.4W (Typ.)

7.AUO G150XTN06.5 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	15pcs / box	20.0 Kgs (Max.)	434380353 mm (LWH)
