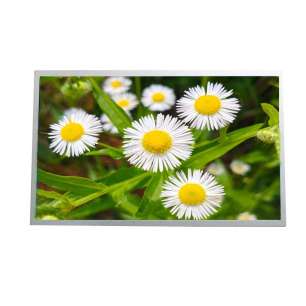

AUO G156HAN02.0 15.6" Medical/Industrial LCD Display | FHD IPS | 1920x1080

AUO G156HAN02.0 15.6` Medical/Industrial LCD Display
AUO G156HAN02.0 15.6` Medical/Industrial LCD Display
  • AUO G156HAN02.0 15.6` Medical/Industrial LCD Display
  • AUO G156HAN02.0 15.6` Medical/Industrial LCD Display

AUO G156HAN02.0 15.6" Medical/Industrial LCD Display | FHD IPS | 1920x1080

Medical-grade AUO 15 6 " FHD IPS LCD Panel G156HAN02 0 1920x1080 resolution, certified for clinical use & industrial durability Wide temperature range, anti-glare surface, and long lifespan

Model G156HAN02.0
Brand AUO
Size 15.6inch
Resolution 1920*1080
Brightness 500 cd/m² (Typ.)
Perspective 89/89/89/89
Interface eDP
Operating Temp -10 ~ 60 °C
Production State In Production
Click For Price

1.AUO 15 6inch Industrial LCD G156HAN02.0  Application Details

Basic Detail :ManufacturerAUOModel Name G156HAN02.0
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size15.6inchDesigned ForIdustrial，Medical Imaging
Maximum Ratings :OP Temperature-20~ 70°CST Temperature-20 ~ 70 °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :SRGB ,WLED Backlight，Life>=50K hours, With LED Driver,Reverse I/F，Matte


2.AUO 15 6inch Industrial LCD  G156HAN02.0  Optical Details

Basic Information :Luminance500cd/m²
(Typ.)		Contrast Ratio1000:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed25 (Typ.)(Tr+Td) (ms)
Viewing Angle89/89/89/89  (Typ.)(CR≥10)Operating ModeAHVA, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color16.2M (6-bit + FRC)
Color Temperature6485KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio75%sRGB98% coverage
Adobe RGB77% coverageDCI-P378% coverage
Rec.202056% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.AUO 15 6inch Industrial LCD G156HAN02.0  Mechanical Details

Pixel Features :Number of Pixel1920(RGB)*1080 [FHD]ArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.05975*0.17925 mmPixel Pitch(W*H)0.17925*0.17925 mm  [141PPI]
Physical Size :Active Viewing(mm)344.16(W)*193.59(H) mmOutline Dim.(mm)363.8*215.9 mm (H*V)
Bezel Area(mm)347.06*196.49 mm (H*V)Depth(mm)8.8±0.5 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Mounting :Side mounting holes (4-M3) on left, right bezel
Other Spec :Weight600/660g (Typ./Max.) (Typ./Max.)TreatmentAntiglare, Hard coating (3H)


4.AUO 15 6inch Industrial LCD G156HAN02.0 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Total Consumption :9.09W (Typ.)


5.AUO 15 6inch Industrial LCD  G156HAN02.0  Interface Detail

Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply240/290mA (Typ./Max.)
Consumption0.79/0.98W (Typ./Max.)Signal InterfaceeDP (2 Lanes)
Interface Features :PositionRearTypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
I-PEX20455-030E-176R  0.5mm30 pins1pcsEDP-30P2L-020A


6.AUO 15 6inch Industrial LCD G156HAN02.0  Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange-Lamp Shape-Lamp Life50K(Min.) Hours
Interface Features :Position-Physical Type
 Included in panel signal interface
Backlight Driver :With LED Driver
Driver Electrical :Voltage Supply12.0±1.2VCurrent Supply0.69A (Typ.)
Consumption8.3/10.4W (Typ./Max.)


7.AUO 15 6inch Industrial LCD G156HAN02.0 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
16pcs / box13.2Kgs450*375*319 mm
