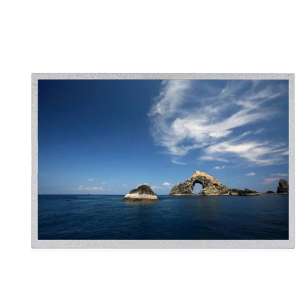

AUO G133HAN01.0 13.3" FHD IPS TFT LCD Display Panel | Projected Capacitive | Industrial LCD

G133HAN01.0
G133HAN01.0
  • G133HAN01.0
  • G133HAN01.0

AUO G133HAN01.0 13.3" FHD IPS TFT LCD Display Panel | Projected Capacitive | Industrial LCD

Original AUO G133HAN01 0 13 3 " IPS LCD: 1920x1080 FHD, 10-point PCAP touch 400 cd m², -20~70°C operation Medical industrial certified MOQ 1pcs, DDP global Request touch sample report!

Model G133HAN01.0
Brand AUO
Size 13.3inch
Resolution 1920*1080
Brightness 400 cd/m²
Perspective 89/89/89/89 (Typ.)
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.AUO  G133HAN01.0 Application Details

Basic Detail :ManufacturerAUOModel NameG133HAN01.0
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size13.3inchDesigned ForIdustrial，Medical Imaging，Gaming
Maximum Ratings :OP Temperature-20 ~ 70°CST Temperature-20 ~ 70 °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :Wide Color Gamut，DCI-P3，sRGB, WLED Backlight，Life>=50k hours, With LED Driver, Matte


2.AUO G133HAN01.0 Optical Details

Basic Information :Luminance400cd/m2; (Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed25 (Typ.)(Tr+Td)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)Operating ModeAHVA, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color16.7M (8-bit)
Color Temperature6485KWhite Variation1.25/1.33 (Typ./Max.)(5 points)
1931 Color Gamlt :NTSC Ratio90%sRGB100% coverage
Adobe RGB82% coverageDCI-P390% coverage
Rec.202067% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.AUO  G133HAN01.0 Mechanical Details

Pixel Features :Number of Pixel1920(RGB)*1080, FHDArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.05095*0.15285 mmPixel Pitch(W*H)0.15285*0.15285 mm  [166PPI]
Physical Size :Active Viewing(mm)293.472(H) *165.078(V)Outline Dim.(mm)309.7(H) *184.1(V)
Bezel Area(mm)295.07(H) *166.68(V)Depth(mm)10.1 (Max.)
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Mounting :Side mounting holes (4-M2) on left, right bezel
Other Spec :Weight500g (Max.)TreatmentAntiglare


4.AUO  G133HAN01.0 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Total Consumption :16.8W (Typ.)


5.AUO  G133HAN01.0 Interface Detail

Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply500mA (Max.)
Consumption1.8W (Max.)Signal InterfaceLVDS (2 ch, 8-bit)
Interface Features :Position-TypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
HRSDF19K-30P-1H(54)1.0mm30 pins1 pcs


6.AUO G133HAN01.0 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange-Lamp Shape-Lamp Life50K(Min.) (Hours)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
HRSDF19G-8P-1H(54)1 pcs1.0 mm5 pins
Backlight Driver :With LED Driver
Driver Electrical :Voltage Supply12±1.2VCurrent Supply1.25A (Typ.)
Consumption15W (Max.)


7.AUO  G133HAN01.0 Packing Details

Package Box :QuantityWeightBox Size
20 pcs / box10.5 Kgs480*275*450 mm (L*W*H)
