G104SAN01 2 is a 10 4 " industrial TFT-LCD by AUO Features 800x600 SVGA resolution, LVDS interface, -30~80℃ operation, 50K hrs LED life Ideal for HMI. Sufficient stock, MOQ 1 piece. Request price, datasheet and lead time from IDT Display.
| Model | G104SAN01.2 |
| Brand | AUO |
| Size | 10.4inch |
| Resolution | 800*600 |
| Brightness | 350cd/m² |
| Perspective | 89/89/89/89 |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |

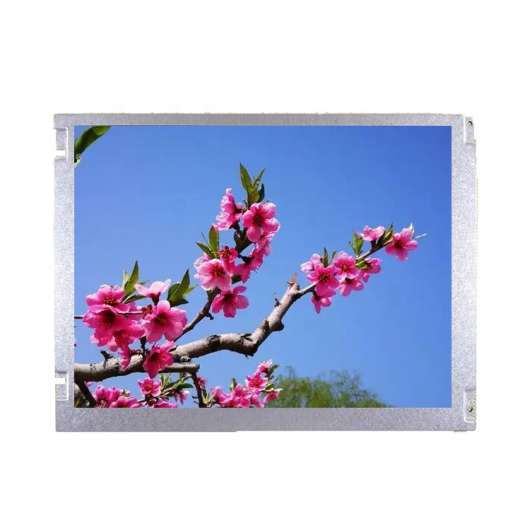

Product Name: AUO 10.4-inch Industrial Grade TFT-LCD Display
Model: G104SAN01.2
G104SAN01.2 Product Overview:
G104SAN01.2 is a 10.4-inch color active matrix TFT-LCD display utilizing AHVA display technology, featuring wide viewing angles, a wide operating temperature range, and long-lasting LED backlighting. It is widely used in harsh environments such as industrial control, human-machine interfaces, medical equipment, and in-vehicle terminals. This module supports LVDS interface, is compatible with G104SN03 V5, has an integrated backlight driver board, and the LED components are replaceable, complying with RoHS standards.
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Contact us for the latest price. Pricing and availability vary based on quantity, specifications, customization requirements and exchange rates. MOQ: 1 piece.
Request a Quote
Product Name: AUO 10.4-inch Industrial Grade TFT-LCD Display
Model: G104SAN01.2
G104SAN01.2 Product Overview:
G104SAN01.2 is a 10.4-inch color active matrix TFT-LCD display utilizing AHVA display technology, featuring wide viewing angles, a wide operating temperature range, and long-lasting LED backlighting. It is widely used in harsh environments such as industrial control, human-machine interfaces, medical equipment, and in-vehicle terminals. This module supports LVDS interface, is compatible with G104SN03 V5, has an integrated backlight driver board, and the LED components are replaceable, complying with RoHS standards.
G104SAN01.2 Key Features:
Screen Size: 10.4 inches diagonal
Resolution: 800 × 600 (SVGA)
Display Colors: 16.7M (8-bit) / 262K (6-bit)
Pixel Pitch: 0.264 × 0.264 mm
Display Mode: AHVA, Normally Black
Surface Treatment: Anti-glare, Hardness 3H
Input Interface: 1-channel LVDS
Operating Temperature: -30℃ to +80℃
Storage Temperature: -30℃ to +80℃
Backlight Lifetime: 50,000 hours (typical)
Typical Brightness: 350 cd/m²
Contrast Ratio: 1200:1 (typical)
Response Time: 25 ms (typical, Rising + Falling)
Viewing Angle: 89° in all directions (CR ≥ 10)
Power Consumption: 2.8W typical (All white pattern)
Weight: TBD
Mechanical Size: 236.0(W) × 176.0(V) × 5.7(D) mm
Active Area: 211.2(H) × 158.4(V) mm
G104SAN01.2 Optical Performance (Room Temperature 25℃):
Project
Typical value
Unit
White brightness
350
cd/m²
white brightness
75%
5 points
Contrast
1200：1
Color gamut
50%
NTSC
Color coordinate (white)
(0.310, 0.330)
CIE 1931
G104SAN01.2 Electrical & Interface Specifications：
Logic Voltage (VDD): 3.3V (typical)
Backlight Input Voltage: 12V (typical)
Backlight Power Consumption: 2.27W (typical)
Dimming Method: PWM (200Hz – 10kHz) or Analog
Signal Connector: 20-pin LVDS
LED Driver Connector: 5-pin (VCC, GND, On/Off, Dimming, NA)
LED Light Bar Connector: 4-pin (Anode + 3 Cathodes)
G104SAN01.2 Reliability testing (part):
Test project
Condition
High temperature and high humidity
40℃ / 90% RH, for 300 hours
High-temperature work
80°C, 300 hours
Low-temperature operation
-30°C, 300 hours
Thermal shock
-30℃ ～ 60℃，100 cycles
Vibration (non-operating)
1.5G，10～200～10Hz
Impact (non-work)
50G, 20ms, half sine wave
ESD
Contact ±8kV / Air ±15kV (Class B)
G104SAN01.2 Compliance & Safety
UL 60950-1 (2nd Edition) compliant
RoHS compliant
Flammability rating: UL94-V1 or better
No sharp edges, no carcinogenic materials
G104SAN01.2 Packaging Information
Quantity per Carton: 30 modules
Carton Weight: ≤16.5 kg
Carton Dimensions: 456mm × 410mm × 371mm
Pallet Size: 935mm × 840mm × 132mm
G104SAN01.2 Safety and compliance:
Complies with UL 60950-1 (Second Edition)
Complies with RoHS environmental standards
No sharp edges, use low-toxicity, flame-retardant materials (UL94-V1 or higher)
G104SAN01.2 Stock, MOQ and Project Support
Stock status: Sufficient stock MOQ: 1 piece
G104SAN01.2 AUO 10.4 Inch Industrial TFT-LCD | LVDS Wide Temperature Display is a industrial LCD display supported for industrial HMI, factory automation, medical equipment, transportation and embedded systems. Confirm the complete model suffix, interface, resolution, connector, outline and operating conditions before ordering or replacing another panel.
Applications and Replacement Support
Suitable project areas include industrial HMI, factory automation, medical equipment, transportation and embedded systems. For replacement projects, send the original model and required quantity so our engineers can compare electrical, optical and mechanical specifications.
Lead Time and Customization
Samples and volume orders are supported. Lead time is confirmed with the current quotation. Touch panel, optical bonding, controller board, cable and cover-glass customization can be evaluated where applicable.
Request Price, Datasheet and Lead Time
Frequently Asked Questions
Is G104SAN01.2 in stock and what is the MOQ?
Sufficient stock is available and the MOQ is 1 piece. Final availability and delivery time are reconfirmed when quoting.
Can you confirm compatibility?
Yes. Send the complete model, interface, resolution, connector, mechanical drawing and application requirements for review.
Related Models and Compatible Display Solutions
Compare related models before ordering. Interface, resolution, connector, dimensions, brightness and operating temperature must be verified for replacement projects.
