G150XAN02 V0 displays abnormal Failure Analysis Report
G150XAN02 V0 display abnormal fault analysis shows that the root cause of the abnormal display (line detection and judgment) is the abnormal internal circuit of U201, which caused a short circuit to ground in AVDD

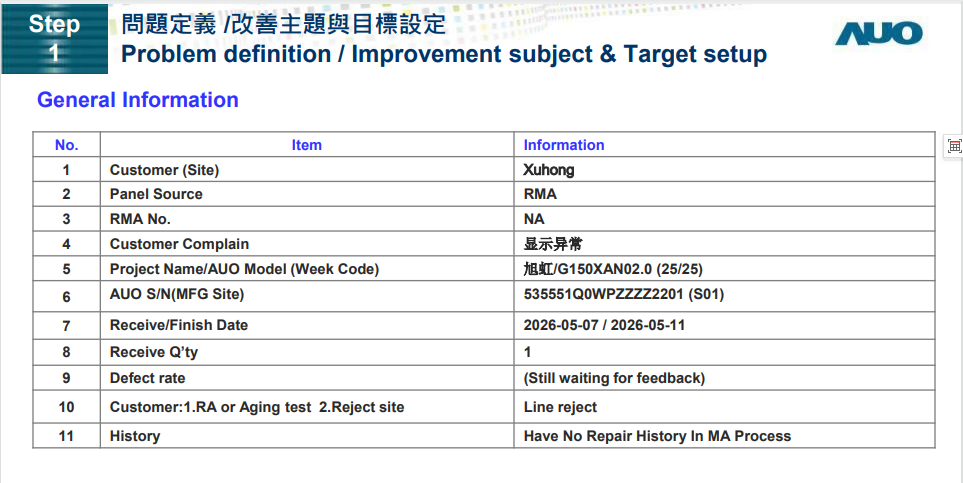

Technical Briefing: Analysis of Abnormal Display Fault in G150XAN02 V0
Report Date: May 11, 2026
Customer: Xuhong
Project Model: G150XAN02 V0
Fault phenomenon: Abnormal display (line detection and judgment)
Problem Overview
Our company received feedback from a customer regarding an abnormal display panel. After AU testing, the fixture was lit up to confirm that the fault can be reproduced, and the screen displayed obvious abnormalities.
Brief description of the analysis process
Appearance inspection: The panel has no physical damage or assembly abnormalities.
Electrical inspection: AVDD network found short circuit to ground.
Circuit positioning: AVDD related components include U201, U601, C206, C207, etc.
Exclude item by item: After removing U201, AVDD's impedance to ground returns to normal.
In depth analysis by AU Optronics manufacturers:
U201 appearance and De Cap inspection showed no abnormalities.
EFA (Fault Localization Analysis) confirms the presence of abnormal hotspots between Pin21 and Pin22.
conclusion
The root cause of the abnormal display is the abnormal internal circuit of U201, which caused a short circuit to ground in AVDD.
Suggested measures for handling
Strengthen the incoming inspection of U201 components (suggest adding electrical screening).
Evaluate supplier quality stability and replace or upgrade components as necessary.
Inspect the same batch of panels to prevent similar issues from escalating.
